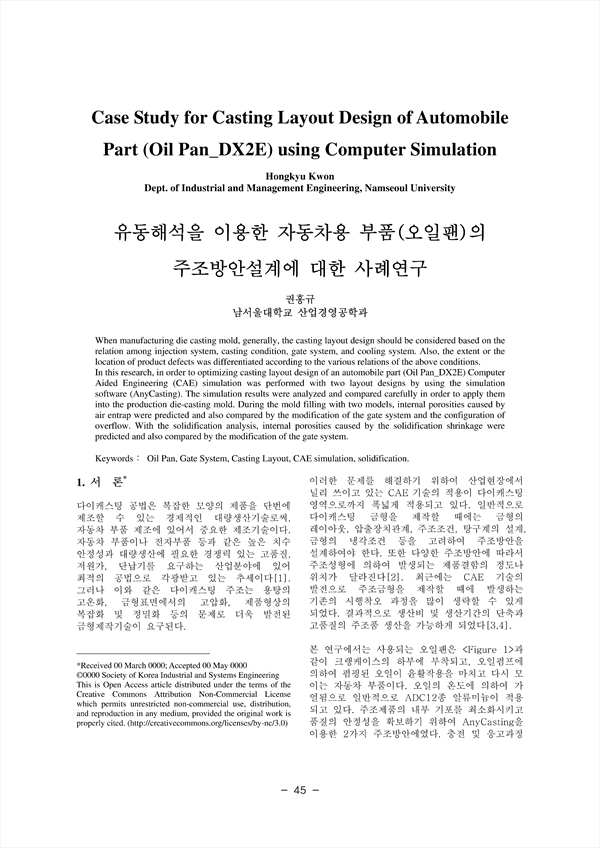

When manufacturing die casting mold, generally, the casting layout design should be considered based on the relation among injection system, casting condition, gate system, and cooling system. Also, the extent or the location of product defects was differentiated according to the various relations of the above conditions.
In this research, in order to optimizing casting layout design of an automobile part (Oil Pan_DX2E) Computer Aided Engineering (CAE) simulation was performed with two layout designs by using the simulation software (AnyCasting). The simulation results were analyzed and compared carefully in order to apply them into the production die-casting mold. During the mold filling with two models, internal porosities caused by air entrap were predicted and also compared by the modification of the gate system and the configuration of overflow. With the solidification analysis, internal porosities caused by the solidification shrinkage were predicted and also compared by the modification of the gate system.

• Hongkyu Kwon(Dept. of Industrial and Management Engineering, Namseoul University) | 권홍규
