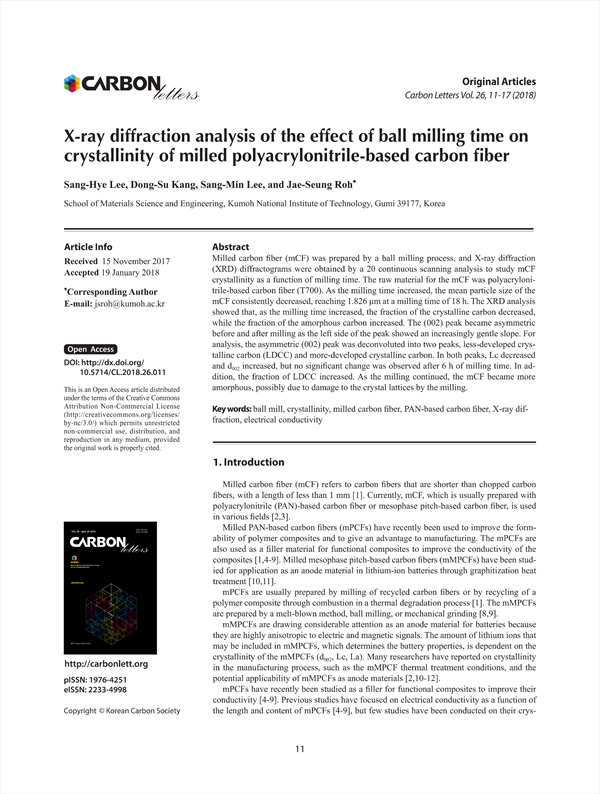

Milled carbon fiber (mCF) was prepared by a ball milling process, and X-ray diffraction (XRD) diffractograms were obtained by a 2θ continuous scanning analysis to study mCF crystallinity as a function of milling time. The raw material for the mCF was polyacrylonitrile- based carbon fiber (T700). As the milling time increased, the mean particle size of the mCF consistently decreased, reaching 1.826 μm at a milling time of 18 h. The XRD analysis showed that, as the milling time increased, the fraction of the crystalline carbon decreased, while the fraction of the amorphous carbon increased. The (002) peak became asymmetric before and after milling as the left side of the peak showed an increasingly gentle slope. For analysis, the asymmetric (002) peak was deconvoluted into two peaks, less-developed crystalline carbon (LDCC) and more-developed crystalline carbon. In both peaks, Lc decreased and d002 increased, but no significant change was observed after 6 h of milling time. In addition, the fraction of LDCC increased. As the milling continued, the mCF became more amorphous, possibly due to damage to the crystal lattices by the milling.

Abstract
 1. Introduction
 2. Experimental
  2.1. Sample preparations
  2.2. Ball milling and characterizations
  2.3. XRD analysis
  2.4. Electrical conductivity measurement
 3. Results and Discussion
  3.1. Scanning electron microscopy
  3.2. XRD analysis
  3.3. Electrical conductivity measurement
 4. Conclusions
 References

• Sang-Hye Lee(School of Materials Science and Engineering, Kumoh National Institute of Technology)
• Dong-Su Kang(School of Materials Science and Engineering, Kumoh National Institute of Technology)
• Sang-Min Lee(School of Materials Science and Engineering, Kumoh National Institute of Technology)
• Jae-Seung Roh(School of Materials Science and Engineering, Kumoh National Institute of Technology) Corresponding Author
