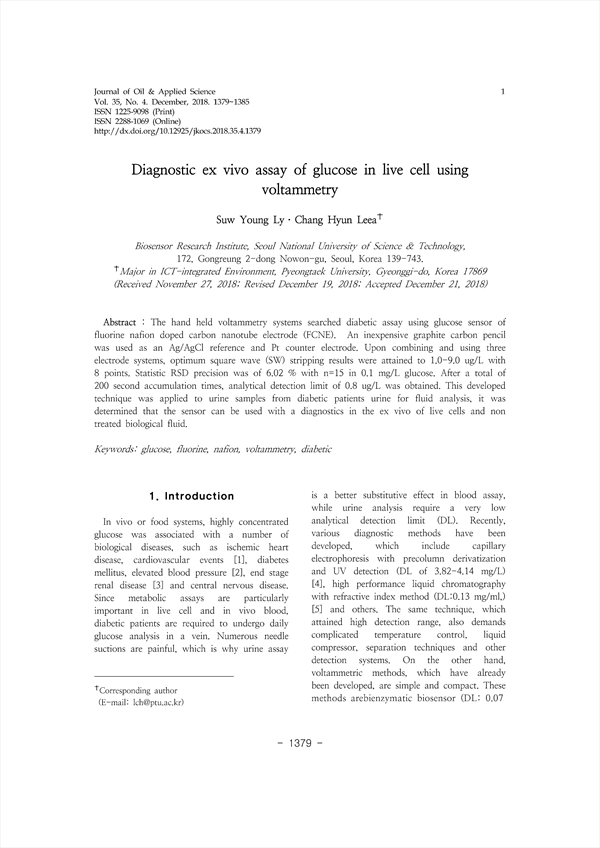

The hand held voltammetry systems searched diabetic assay using glucose sensor of fluorine nafion doped carbon nanotube electrode (FCNE). An inexpensive graphite carbon pencil was used as an Ag/AgCl reference and Pt counter electrode. Upon combining and using three electrode systems, optimum square wave (SW) stripping results were attained to 1.0-9.0 ug/L with 8 points. Statistic RSD precision was of 6.02 % with n=15 in 0.1 mg/L glucose. After a total of 200 second accumulation times, analytical detection limit of 0.8 ug/L was obtained. This developed technique was applied to urine samples from diabetic patients urine for fluid analysis, it was determined that the sensor can be used with a diagnostics in the ex vivo of live cells and non treated biological fluid.

Abstract
 1. Introduction
 2. Experimental procedure
 3. Results and discussion
 4. Conclusion
 References

• Suw Young Ly(Biosensor Research Institute, Seoul National University of Science & Technology)
• Chang Hyun Leea(Major in ICT-integrated Environment, Pyeongtaek University) Corresponding author
