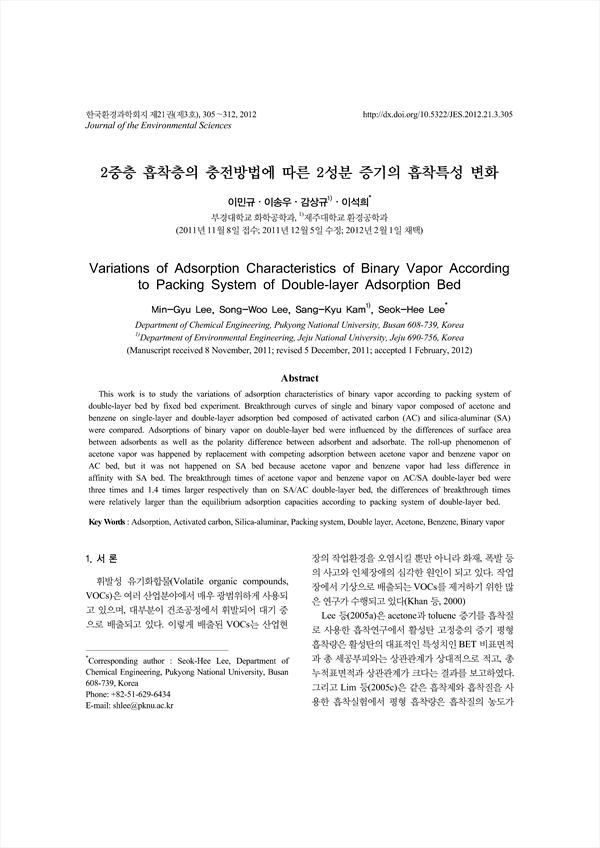

This work is to study the variations of adsorption characteristics of binary vapor according to packing system of double-layer bed by fixed bed experiment. Breakthrough curves of single and binary vapor composed of acetone and benzene on single-layer and double-layer adsorption bed composed of activated carbon (AC) and silica-aluminar (SA) were compared. Adsorptions of binary vapor on double-layer bed were influenced by the differences of surface area between adsorbents as well as the polarity difference between adsorbent and adsorbate. The roll-up phenomenon of acetone vapor was happened by replacement with competing adsorption between acetone vapor and benzene vapor on AC bed, but it was not happened on SA bed because acetone vapor and benzene vapor had less difference in affinity with SA bed. The breakthrough times of acetone vapor and benzene vapor on AC/SA double-layer bed were three times and 1.4 times larger respectively than on SA/AC double-layer bed, the differences of breakthrough times were relatively larger than the equilibrium adsorption capacities according to packing system of double-layer bed.

Abstract
 1. 서 론
 2. 재료 및 방법
  2.1. 실험재료
  2.2. 실험장치 및 방법
  2.3. 분석
 3. 결과 및 고찰
  3.1. 단일 흡착층에서 단일성분 증기와 2성분 증기의 파과 특성 비교
  3.2. 2중층 흡착층에서 흡착층의 충전방법에 따른 2성분 증기의 파과특성 비교
  3.3. 흡착층의 충전방법에 따른 2성분 증기의 평형흡착량과 파과시간 비교
 4. 결 론
 참 고 문 헌

• 이민규(부경대학교 화학공학과) | Min-Gyu Lee (Department of Chemical Engineering, Pukyong National University)
• 이송우(부경대학교 화학공학과) | Song-Woo Lee (Department of Chemical Engineering, Pukyong National University)
• 감상규(제주대학교 환경공학과) | Sang-Kyu Kam (Department of Environmental Engineering, Jeju National University)
• 이석희(부경대학교 화학공학과) | Seok-Hee Lee (Department of Chemical Engineering, Pukyong National University) Corresponding author
