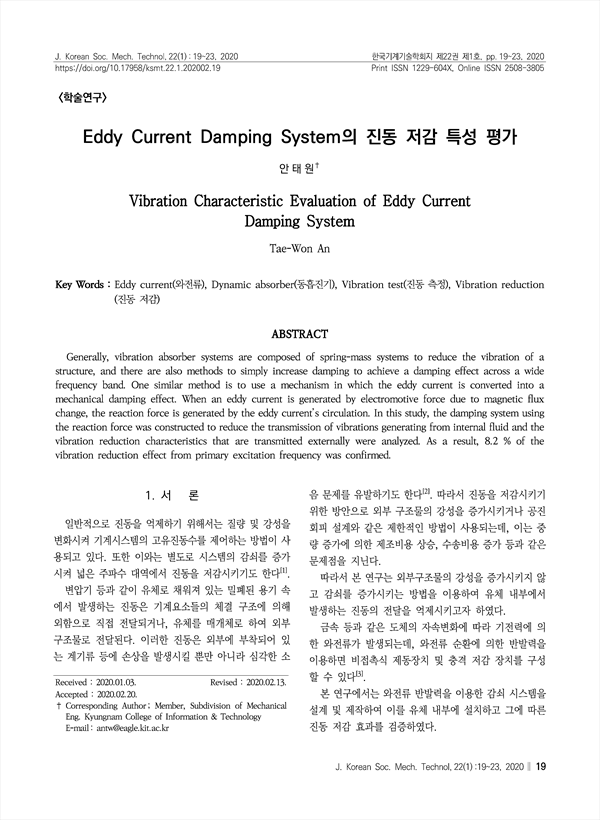

Vibration Characteristic Evaluation of Eddy Current Damping System
Generally, vibration absorber systems are composed of spring-mass systems to reduce the vibration of a structure, and there are also methods to simply increase damping to achieve a damping effect across a wide frequency band. One similar method is to use a mechanism in which the eddy current is converted into a mechanical damping effect. When an eddy current is generated by electromotive force due to magnetic flux change, the reaction force is generated by the eddy current’s circulation. In this study, the damping system using the reaction force was constructed to reduce the transmission of vibrations generating from internal fluid and the vibration reduction characteristics that are transmitted externally were analyzed. As a result, 8.2 % of the vibration reduction effect from primary excitation frequency was confirmed.
