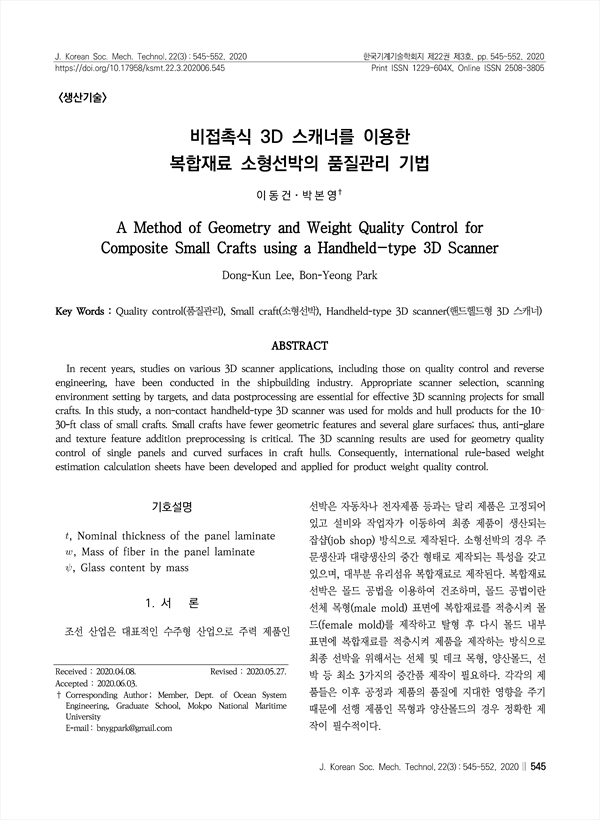

비접촉식 3D 스캐너를 이용한 복합재료 소형선박의 품질관리 기법 KCI 등재

A Method of Geometry and Weight Quality Control for Composite Small Crafts using a Handheld-type 3D Scanner

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/396004
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
한국기계기술학회지 (Journal of the Korean Society of Mechanical Technology)
한국기계기술학회 (Korean Society of Mechanical Technology)
초록

In recent years, studies on various 3D scanner applications, including those on quality control and reverse engineering, have been conducted in the shipbuilding industry. Appropriate scanner selection, scanning environment setting by targets, and data postprocessing are essential for effective 3D scanning projects for small crafts. In this study, a non-contact handheld-type 3D scanner was used for molds and hull products for the 10– 30-ft class of small crafts. Small crafts have fewer geometric features and several glare surfaces; thus, anti-glare and texture feature addition preprocessing is critical. The 3D scanning results are used for geometry quality control of single panels and curved surfaces in craft hulls. Consequently, international rule-based weight estimation calculation sheets have been developed and applied for product weight quality control.

목차
ABSTRACT
1. 서 론
2. 3D 스캐너를 이용한소형선박의 품질관리 사례
    2.1 3D 스캐너의 종류
    2.2 3D 스캐닝 기반 소형선박 품질관리
3. 복합재료 소형선박의품질관리 고도화 방안
    3.1 복합재료 소형선박 품질관리 고도화 방안
    3.2 형상모델 개발 및 품질평가
    3.3 중량모델 개발 및 품질평가
5. 결 론
References
저자
  • 이동건(Dept. of Ocean System Engineering, Graduate School, Mokpo National Maritime University) | Dong-Kun Lee
  • 박본영(Dept. of Ocean System Engineering, Graduate School, Mokpo National Maritime University) | Bon-Yeong Park Corresponding Author
