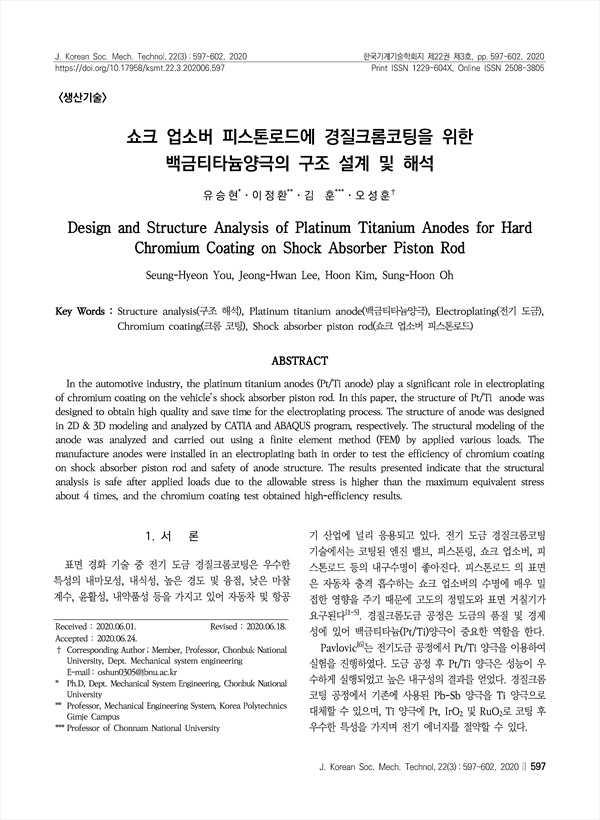

In the automotive industry, the platinum titanium anodes (Pt/Ti anode) play a significant role in electroplating of chromium coating on the vehicle’s shock absorber piston rod. In this paper, the structure of Pt/Ti anode was designed to obtain high quality and save time for the electroplating process. The structure of anode was designed in 2D & 3D modeling and analyzed by CATIA and ABAQUS program, respectively. The structural modeling of the anode was analyzed and carried out using a finite element method (FEM) by applied various loads. The manufacture anodes were installed in an electroplating bath in order to test the efficiency of chromium coating on shock absorber piston rod and safety of anode structure. The results presented indicate that the structural analysis is safe after applied loads due to the allowable stress is higher than the maximum equivalent stress about 4 times, and the chromium coating test obtained high-efficiency results.

ABSTRACT
1. 서 론
2. Pt/Ti 양극 설계
3. 구조해석
4. Pt/Ti 양극의 제작 및 시험평가
5. 결 론
References

• 유승현(Dept. Mechanical System Engineering, Chonbuk National University) | Seung-Hyeon You
• 이정환(Mechanical Engineering System, Korea Polytechnics Gimje Campus) | Jeong-Hwan Lee
• 김 훈(Chonnam National University) | Hoon Kim
• 오성훈(Chonbuk National University, Dept. Mechanical system engineering) | Sung-Hoon Oh Corresponding Author
