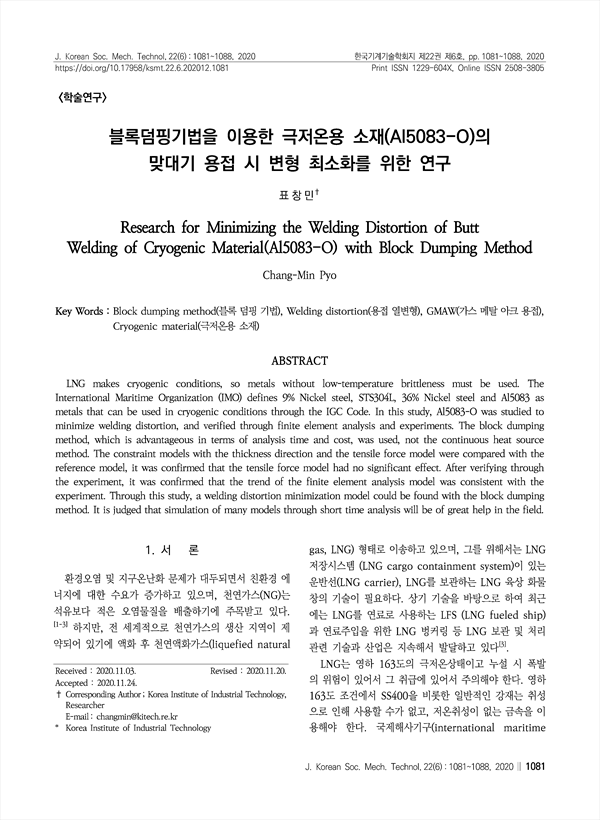

LNG makes cryogenic conditions, so metals without low-temperature brittleness must be used. The International Maritime Organization (IMO) defines 9% Nickel steel, STS304L, 36% Nickel steel and Al5083 as metals that can be used in cryogenic conditions through the IGC Code. In this study, Al5083-O was studied to minimize welding distortion, and verified through finite element analysis and experiments. The block dumping method, which is advantageous in terms of analysis time and cost, was used, not the continuous heat source method. The constraint models with the thickness direction and the tensile force model were compared with the reference model, it was confirmed that the tensile force model had no significant effect. After verifying through the experiment, it was confirmed that the trend of the finite element analysis model was consistent with the experiment. Through this study, a welding distortion minimization model could be found with the block dumping method. It is judged that simulation of many models through short time analysis will be of great help in the field.

• 표창민(한국생산기술연구원) | Chang-Min Pyo 교신
