pp.47-53

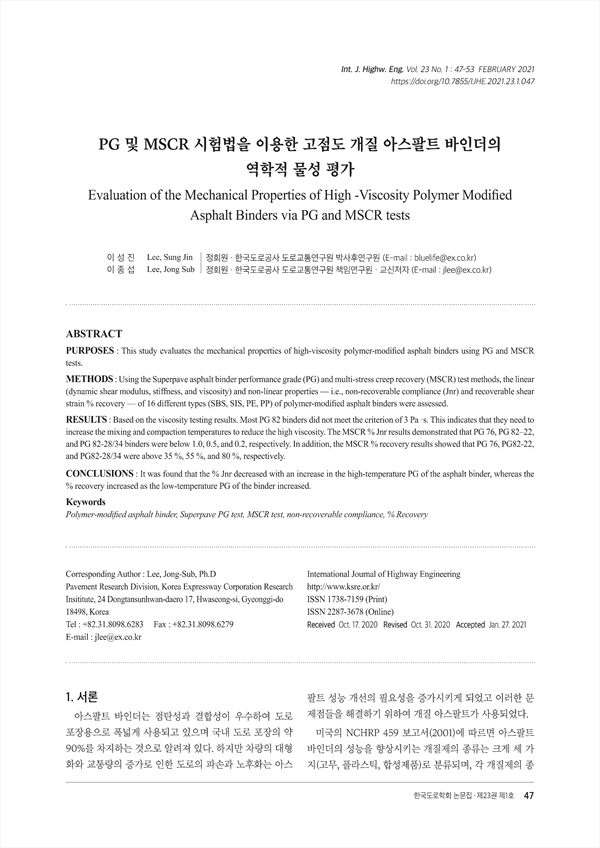

PURPOSES : This study evaluates the mechanical properties of high-viscosity polymer-modified asphalt binders using PG and MSCR tests.
METHODS : Using the Superpave asphalt binder performance grade (PG) and multi-stress creep recovery (MSCR) test methods, the linear (dynamic shear modulus, stiffness, and viscosity) and non-linear properties — i.e., non-recoverable compliance (Jnr) and recoverable shear strain % recovery — of 16 different types (SBS, SIS, PE, PP) of polymer-modified asphalt binders were assessed.
RESULTS : Based on the viscosity testing results. Most PG 82 binders did not meet the criterion of 3 Pa ·s. This indicates that they need to increase the mixing and compaction temperatures to reduce the high viscosity. The MSCR % Jnr results demonstrated that PG 76, PG 82–22, and PG 82-28/34 binders were below 1.0, 0.5, and 0.2, respectively. In addition, the MSCR % recovery results showed that PG 76, PG82-22, and PG82-28/34 were above 35 %, 55 %, and 80 %, respectively.
CONCLUSIONS : It was found that the % Jnr decreased with an increase in the high-temperature PG of the asphalt binder, whereas the % recovery increased as the low-temperature PG of the binder increased.
1. 서론
2. 재료 및 방법
2.1. 사용재료
2.2. 시험방법
3. 결과 및 고찰
3.1. PG등급 시험결과
3.2. MSCR 시험결과
4. 결론
REFERENCES
