써큐레이터의 플라스틱 후면 커버 성형용 금형에 적용된 형상 적응형 냉각 채널의 효과 KCI 등재

Effect of Conformal Cooling Channels Applield to Mold for Plastic Back Cover of Circulator

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/405780
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
한국기계기술학회지 (Journal of the Korean Society of Mechanical Technology)
한국기계기술학회 (Korean Society of Mechanical Technology)
초록

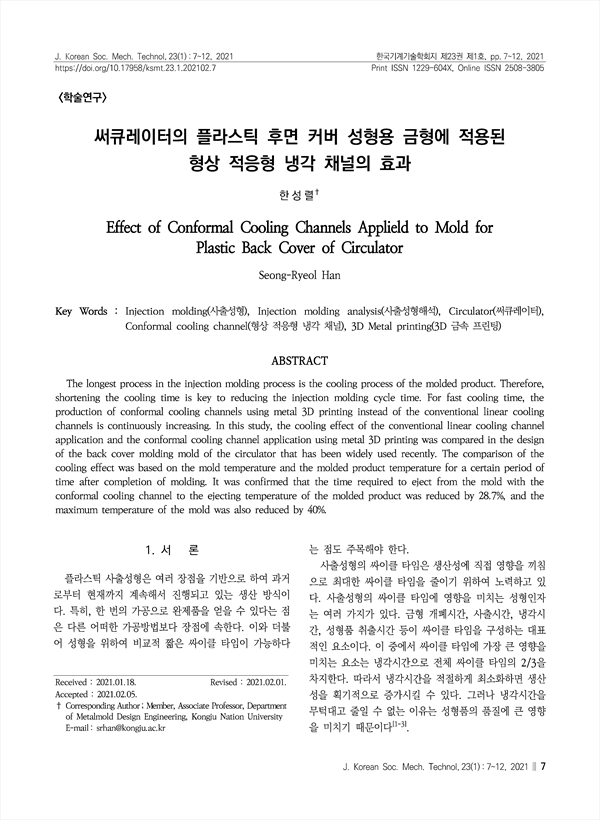

The longest process in the injection molding process is the cooling process of the molded product. Therefore, shortening the cooling time is key to reducing the injection molding cycle time. For fast cooling time, the production of conformal cooling channels using metal 3D printing instead of the conventional linear cooling channels is continuously increasing. In this study, the cooling effect of the conventional linear cooling channel application and the conformal cooling channel application using metal 3D printing was compared in the design of the back cover molding mold of the circulator that has been widely used recently. The comparison of the cooling effect was based on the mold temperature and the molded product temperature for a certain period of time after completion of molding. It was confirmed that the time required to eject from the mold with the conformal cooling channel to the ejecting temperature of the molded product was reduced by 28.7%, and the maximum temperature of the mold was also reduced by 40%.

저자
  • 한성렬(공주대학교 금형설계공학과) | Seong-Ryeol Han Corresponding Author
