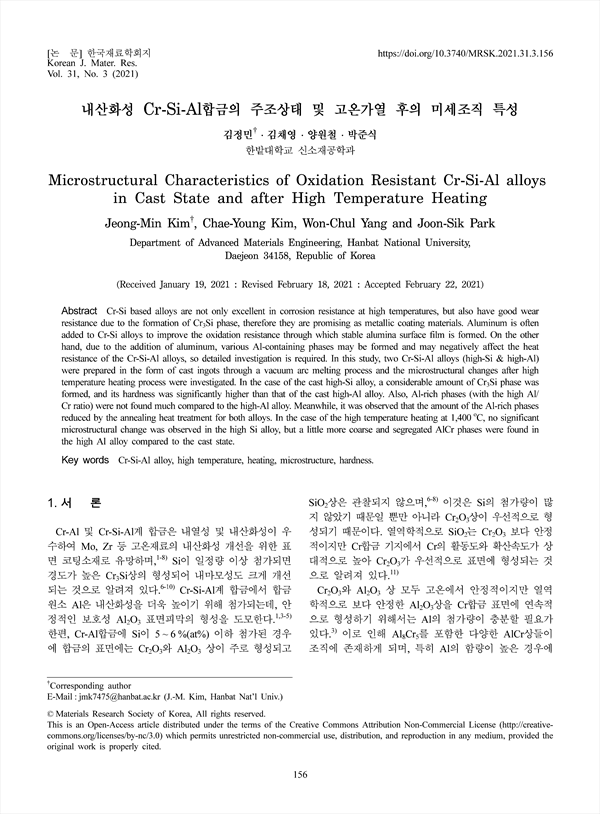

Cr-Si based alloys are not only excellent in corrosion resistance at high temperatures, but also have good wear resistance due to the formation of Cr3Si phase, therefore they are promising as metallic coating materials. Aluminum is often added to Cr-Si alloys to improve the oxidation resistance through which stable alumina surface film is formed. On the other hand, due to the addition of aluminum, various Al-containing phases may be formed and may negatively affect the heat resistance of the Cr-Si-Al alloys, so detailed investigation is required. In this study, two Cr-Si-Al alloys (high-Si & high-Al) were prepared in the form of cast ingots through a vacuum arc melting process and the microstructural changes after high temperature heating process were investigated. In the case of the cast high-Si alloy, a considerable amount of Cr3Si phase was formed, and its hardness was significantly higher than that of the cast high-Al alloy. Also, Al-rich phases (with the high Al/ Cr ratio) were not found much compared to the high-Al alloy. Meanwhile, it was observed that the amount of the Al-rich phases reduced by the annealing heat treatment for both alloys. In the case of the high temperature heating at 1,400 oC, no significant microstructural change was observed in the high Si alloy, but a little more coarse and segregated AlCr phases were found in the high Al alloy compared to the cast state.

Abstract
1.서 론
2. 실험 방법
3. 결과 및 고찰
4.결 론
References

• 김정민(한밭대학교 신소재공학과) | Jeong-Min Kim (Department of Advanced Materials Engineering, Hanbat National University) Corresponding author
• 김채영(한밭대학교 신소재공학과) | Chae-Young Kim (Department of Advanced Materials Engineering, Hanbat National University)
• 양원철(한밭대학교 신소재공학과) | Won-Chul Yang (Department of Advanced Materials Engineering, Hanbat National University)
• 박준식(한밭대학교 신소재공학과) | Joon-Sik Park (Department of Advanced Materials Engineering, Hanbat National University)
