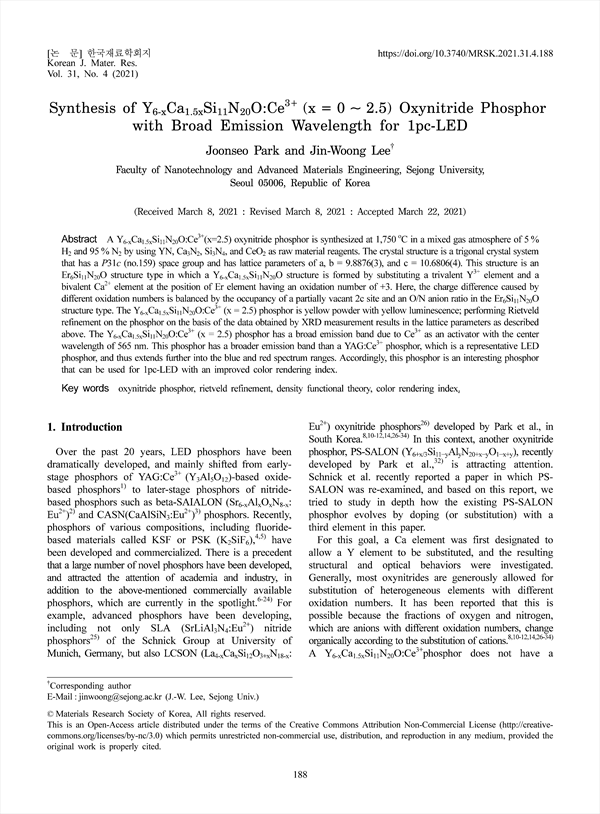

A Y6-xCa1.5xSi11N20O:Ce3+(x=2.5) oxynitride phosphor is synthesized at 1,750 oC in a mixed gas atmosphere of 5% H2 and 95 % N2 by using YN, Ca3N2, Si3N4, and CeO2 as raw material reagents. The crystal structure is a trigonal crystal system that has a P31c (no.159) space group and has lattice parameters of a, b = 9.8876(3), and c = 10.6806(4). This structure is an Er6Si11N20O structure type in which a Y6-xCa1.5xSi11N20O structure is formed by substituting a trivalent Y3+ element and a bivalent Ca2+ element at the position of Er element having an oxidation number of +3. Here, the charge difference caused by different oxidation numbers is balanced by the occupancy of a partially vacant 2c site and an O/N anion ratio in the Er6Si11N20O structure type. The Y6-xCa1.5xSi11N20O:Ce3+ (x = 2.5) phosphor is yellow powder with yellow luminescence; performing Rietveld refinement on the phosphor on the basis of the data obtained by XRD measurement results in the lattice parameters as described above. The Y6-xCa1.5xSi11N20O:Ce3+ (x = 2.5) phosphor has a broad emission band due to Ce3+ as an activator with the center wavelength of 565 nm. This phosphor has a broader emission band than a YAG:Ce3+ phosphor, which is a representative LED phosphor, and thus extends further into the blue and red spectrum ranges. Accordingly, this phosphor is an interesting phosphor that can be used for 1pc-LED with an improved color rendering index.

Abstract
1. Introduction
2. Experimental Procedure
3. Results and Discussion
4. Conclusion
References

• Joonseo Park(Faculty of Nanotechnology and Advanced Materials Engineering, Sejong University)
• Jin-Woong Lee(Faculty of Nanotechnology and Advanced Materials Engineering, Sejong University) Corresponding author
