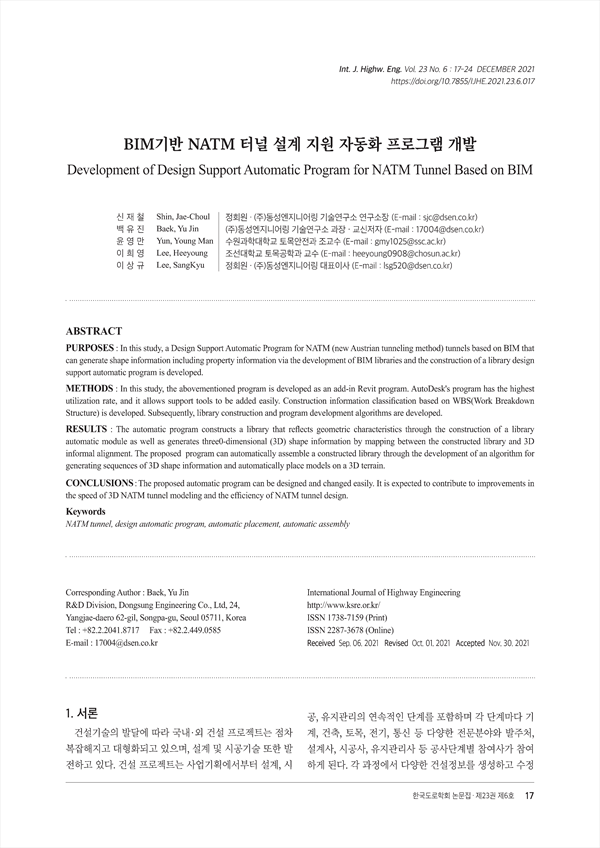

PURPOSES : In this study, a Design Support Automatic Program for NATM (new Austrian tunneling method) tunnels based on BIM that can generate shape information including property information via the development of BIM libraries and the construction of a library design support automatic program is developed.
METHODS : In this study, the abovementioned program is developed as an add-in Revit program. AutoDesk's program has the highest utilization rate, and it allows support tools to be added easily. Construction information classification based on WBS(Work Breakdown Structure) is developed. Subsequently, library construction and program development algorithms are developed.
RESULTS : The automatic program constructs a library that reflects geometric characteristics through the construction of a library automatic module as well as generates three0-dimensional (3D) shape information by mapping between the constructed library and 3D informal alignment. The proposed program can automatically assemble a constructed library through the development of an algorithm for generating sequences of 3D shape information and automatically place models on a 3D terrain.
CONCLUSIONS : The proposed automatic program can be designed and changed easily. It is expected to contribute to improvements in the speed of 3D NATM tunnel modeling and the efficiency of NATM tunnel design.

ABSTRACT
1. 서론
    1.1. 국외 BIM 추진현황
    1.2. 국내 BIM 추진현황
    1.3. 연구의 범위
    1.4. 연구의 방법
2. 국내 터널현황
    2.1. 도로 종류별 터널 분포 현황
    2.2. 고속국도 터널 공법 적용 현황
    2.3. 국도 터널 공법 적용 현황
    2.4. 국내 터널 현황 분석
3. BIM기반 NATM 터널 설계 지원 자동화 프로그램 개발
    3.1. WBS를 고려한 BIM기반 건설정보 분류체계
    3.2. 라이브러리 구축
    3.3. 단면 자동화 생성 모듈 및 라이브러리 자동조립모듈 개발
    3.4. 설치고 추출 및 라이브러리 자동배치 모듈 개발
    3.5. BIM기반 NATM 터널 설계 지원 자동화 프로그램개발
4. 결론
REFERENCES

• 신재철((주)동성엔지니어링 기술연구소) | Shin Jae-Choul
• 백유진((주)동성엔지니어링 기술연구소) | Baek Yu Jin (R&D Division, Dongsung Engineering Co., Ltd) 교신저자
• 윤영만(수원과학대학교 토목안전과) | Yun Young Man
• 이희영(조선대학교 토목공학과) | Lee Heeyoung
• 이상규((주)동성엔지니어링) | Lee SangKyu
