pp.11-20

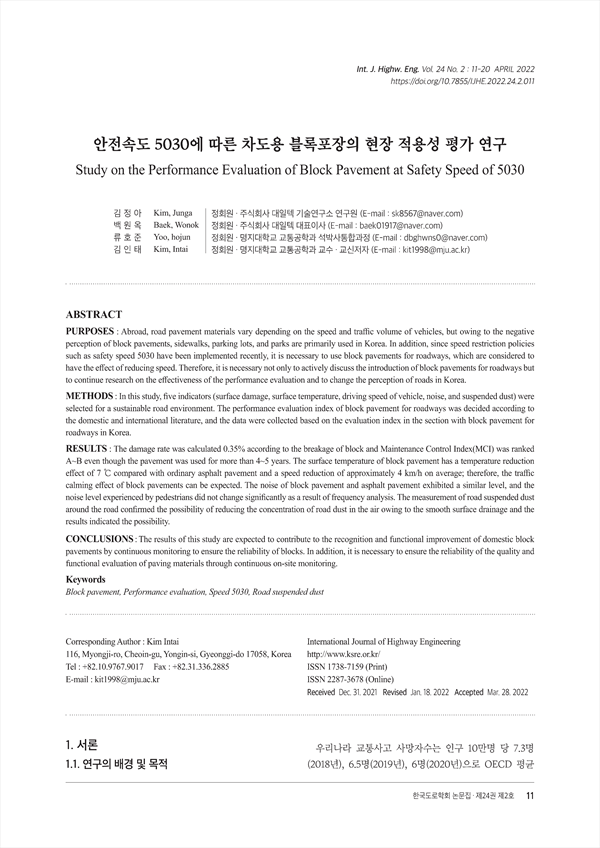

PURPOSES : Abroad, road pavement materials vary depending on the speed and traffic volume of vehicles, but owing to the negative perception of block pavements, sidewalks, parking lots, and parks are primarily used in Korea. In addition, since speed restriction policies such as safety speed 5030 have been implemented recently, it is necessary to use block pavements for roadways, which are considered to have the effect of reducing speed. Therefore, it is necessary not only to actively discuss the introduction of block pavements for roadways but to continue research on the effectiveness of the performance evaluation and to change the perception of roads in Korea.
METHODS : In this study, five indicators (surface damage, surface temperature, driving speed of vehicle, noise, and suspended dust) were selected for a sustainable road environment. The performance evaluation index of block pavement for roadways was decided according to the domestic and international literature, and the data were collected based on the evaluation index in the section with block pavement for roadways in Korea.
RESULTS : The damage rate was calculated 0.35% according to the breakage of block and Maintenance Control Index(MCI) was ranked A~B even though the pavement was used for more than 4~5 years. The surface temperature of block pavement has a temperature reduction effect of 7 ℃ compared with ordinary asphalt pavement and a speed reduction of approximately 4 km/h on average; therefore, the traffic calming effect of block pavements can be expected. The noise of block pavement and asphalt pavement exhibited a similar level, and the noise level experienced by pedestrians did not change significantly as a result of frequency analysis. The measurement of road suspended dust around the road confirmed the possibility of reducing the concentration of road dust in the air owing to the smooth surface drainage and the results indicated the possibility.
CONCLUSIONS : The results of this study are expected to contribute to the recognition and functional improvement of domestic block pavements by continuous monitoring to ensure the reliability of blocks. In addition, it is necessary to ensure the reliability of the quality and functional evaluation of paving materials through continuous on-site monitoring.
1. 서론
1.1. 연구의 배경 및 목적
1.2. 연구의 범위 및 방법
2. 선행연구 검토
3. 조사대상 구간
3.1. 조사구간 개요
3.2. 단면구성 및 재료
3.3. 공용성 평가방법
4. 측정결과 분석
4.1. 표면 파손
4.2. 표면 온도
4.3. 차량 주행속도
4.4. 소음
4.5. 비산먼지
5. 결론 및 활용방안
REFERENCES
