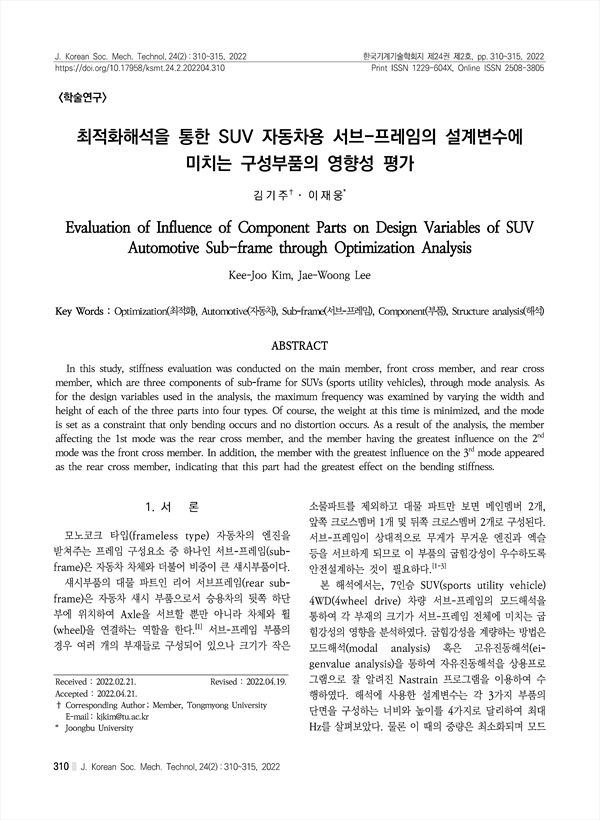

In this study, stiffness evaluation was conducted on the main member, front cross member, and rear cross member, which are three components of sub-frame for SUVs (sports utility vehicles), through mode analysis. As for the design variables used in the analysis, the maximum frequency was examined by varying the width and height of each of the three parts into four types. Of course, the weight at this time is minimized, and the mode is set as a constraint that only bending occurs and no distortion occurs. As a result of the analysis, the member affecting the 1st mode was the rear cross member, and the member having the greatest influence on the 2nd mode was the front cross member. In addition, the member with the greatest influence on the 3rd mode appeared as the rear cross member, indicating that this part had the greatest effect on the bending stiffness.

• 김기주(동명대학교) | Kim kee joo Corresponding author
• 이재웅(중부대학교) | lee jae woong
