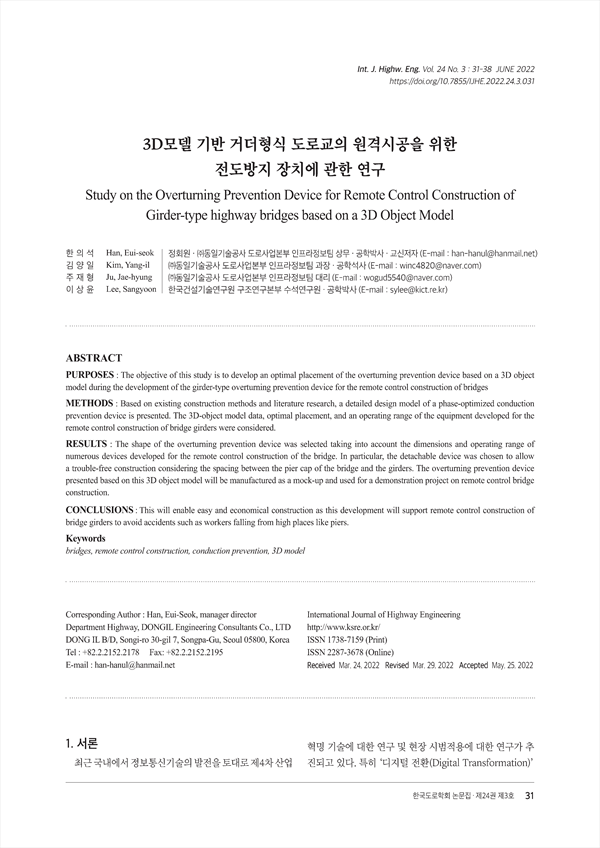

3D모델 기반 거더형식 도로교의 원격시공을 위한 전도방지 장치에 관한 연구 KCI 등재

Study on the Overturning Prevention Device for Remote Control Construction of Girder-type highway bridges based on a 3D Object Model

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/414877
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
한국도로학회논문집 (International journal of highway engineering)
한국도로학회 (Korean Society of Road Engineers)
초록

PURPOSES : The objective of this study is to develop an optimal placement of the overturning prevention device based on a 3D object model during the development of the girder-type overturning prevention device for the remote control construction of bridges
METHODS : Based on existing construction methods and literature research, a detailed design model of a phase-optimized conduction prevention device is presented. The 3D-object model data, optimal placement, and an operating range of the equipment developed for the remote control construction of bridge girders were considered.
RESULTS : The shape of the overturning prevention device was selected taking into account the dimensions and operating range of numerous devices developed for the remote control construction of the bridge. In particular, the detachable device was chosen to allow a trouble-free construction considering the spacing between the pier cap of the bridge and the girders. The overturning prevention device presented based on this 3D object model will be manufactured as a mock-up and used for a demonstration project on remote control bridge construction. CONCLUSIONS : This will enable easy and economical construction as this development will support remote control construction of bridge girders to avoid accidents such as workers falling from high places like piers.

목차
ABSTRACT
1. 서론
2. 거더교의 거치 시공방법
    2.1. 현행 거더교 거치 시공
    2.2. 제안된 원격 정밀 시공
3. 3D모델 기반 전도방지 장치 상세 제안
    3.1. 3D모델 기반 제약조건 검토
    3.2. 3D모델 기반 전도방지 장치 상세 설계
4. 결론
REFERENCES
저자
  • 한의석(㈜동일기술공사 도로사업본부 인프라정보팀 상무 · 공학박사) | Han Eui-seok Corresponding author
  • 김양일(㈜동일기술공사 도로사업본부 인프라정보팀 과장 · 공학석사) | Kim Yang-il
  • 주재형(㈜동일기술공사 도로사업본부 인프라정보팀 대리) | Ju Jae-hyung
  • 이상윤(한국건설기술연구원 구조연구본부 수석연구원 · 공학박사) | Lee Sangyoon
