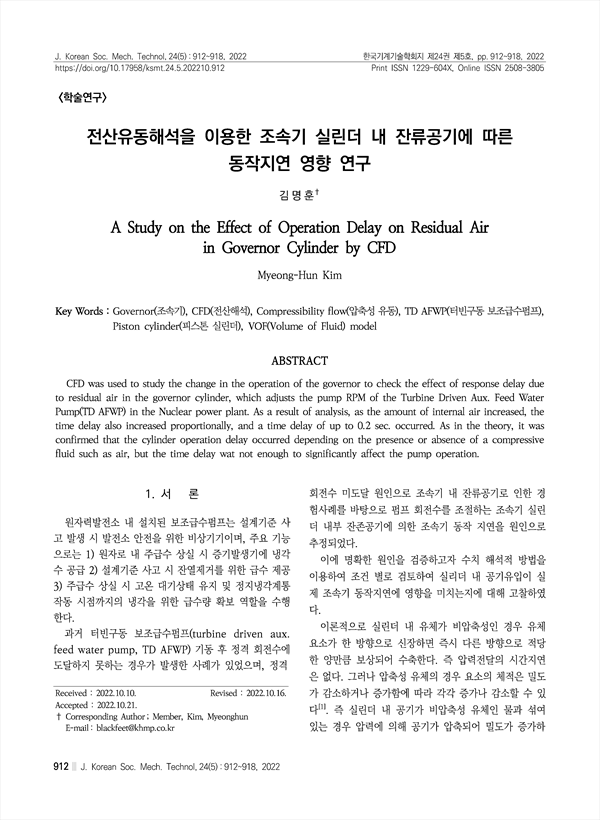

CFD was used to study the change in the operation of the governor to check the effect of response delay due to residual air in the governor cylinder, which adjusts the pump RPM of the Turbine Driven Aux. Feed Water Pump(TD AFWP) in the Nuclear power plant. As a result of analysis, as the amount of internal air increased, the time delay also increased proportionally, and a time delay of up to 0.2 sec. occurred. As in the theory, it was confirmed that the cylinder operation delay occurred depending on the presence or absence of a compressive fluid such as air, but the time delay wat not enough to significantly affect the pump operation.

• 김명훈(한국수력원자력) | Myeong-Hun Kim Corresponding author
