pp.205-213

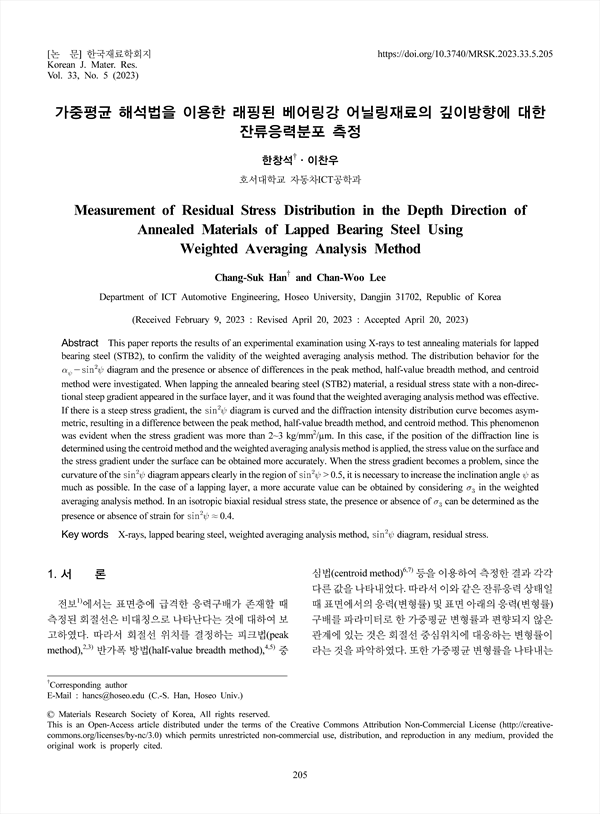

This paper reports the results of an experimental examination using X-rays to test annealing materials for lapped bearing steel (STB2), to confirm the validity of the weighted averaging analysis method. The distribution behavior for the sin diagram and the presence or absence of differences in the peak method, half-value breadth method, and centroid method were investigated. When lapping the annealed bearing steel (STB2) material, a residual stress state with a non-directional steep gradient appeared in the surface layer, and it was found that the weighted averaging analysis method was effective. If there is a steep stress gradient, the sin diagram is curved and the diffraction intensity distribution curve becomes asymmetric, resulting in a difference between the peak method, half-value breadth method, and centroid method. This phenomenon was evident when the stress gradient was more than 2~3 kg/mm2/μm. In this case, if the position of the diffraction line is determined using the centroid method and the weighted averaging analysis method is applied, the stress value on the surface and the stress gradient under the surface can be obtained more accurately. When the stress gradient becomes a problem, since the curvature of the sin diagram appears clearly in the region of sin > 0.5, it is necessary to increase the inclination angle as much as possible. In the case of a lapping layer, a more accurate value can be obtained by considering in the weighted averaging analysis method. In an isotropic biaxial residual stress state, the presence or absence of can be determined as the presence or absence of strain for sin≈0.4.
1. 서 론
2. 잔류응력의 해석이론
3. 실험방법
4. 결 과
4.1. 어닐링 상태
4.2. 래핑가공으로 발생한 잔류응력의 무방향성 확인
4.3. 랩핑가공 표면 아래의 잔류응력분포
5. 고 찰
6. 결 론
References
