pp.7-25

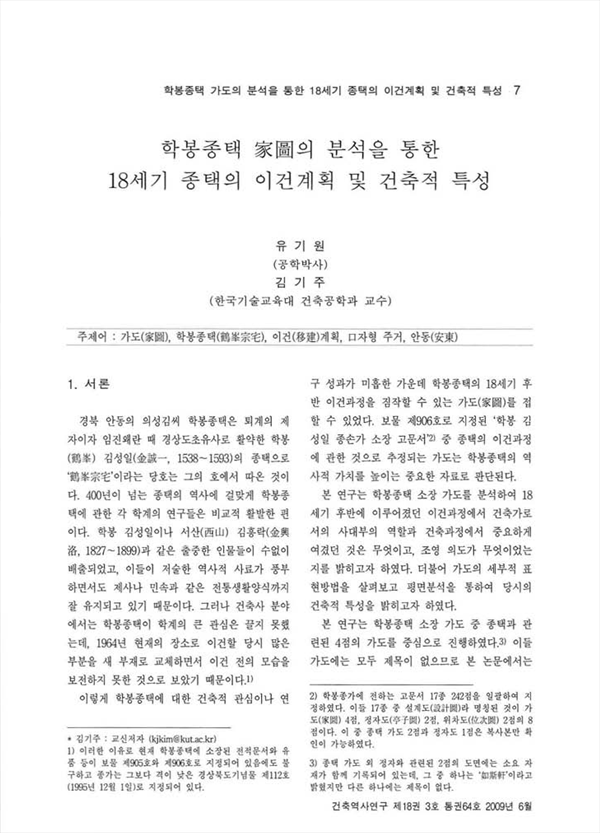

Hakbongjongtaek(The head house of Uisong Kim family, 鶴峯宗宅), firstly built in the early 17th century, was moved to its neighboring place in the late 18th century. The man who led the relocation(移建) of the house was the eldest grandson of the family, Jong-soo, Kim. He made an overall plan and also participated in building the house. There remain four Gados(family paintings, 家圖) related to the relocation plan. This paper aims to make an analysis of these Gados, and through the analysis, to find what was the essential point of the relocation plan and how the point was represented in the paintings. The result of analysis is as follows: 1. The main focus of relocation plan was the form of Anchae(the inner house). Anchae was designed as asymmetrical form, and restricted to four kan. Only Andaechung needed to be 6 kan size for religious ceremonies. 2. For the design of Sarangchae, the displacement of large Sarangbang and small Sarangbang was an important issue. There were two ways of layout: parallel type and facing type. The latter was chosen. 3. The representation and techniques of Gado is quite concrete, in spite of differences among them. The expression of doors, windows, attic and kitchen was based on the understanding of space. Also the spatial division, which was expressed line on the grid, was based on the scaled ruler. As we've seen before, painting the relocation plan was a kind of endeavors to make the housing type as a realization of Garye. Also, we can find out that the role of the eldest grandson of the family was quite important to carry out the plan. As well as, it was meaningful to examine Sadaebu (the aristocrat of Chosun)'s perception of housing.
