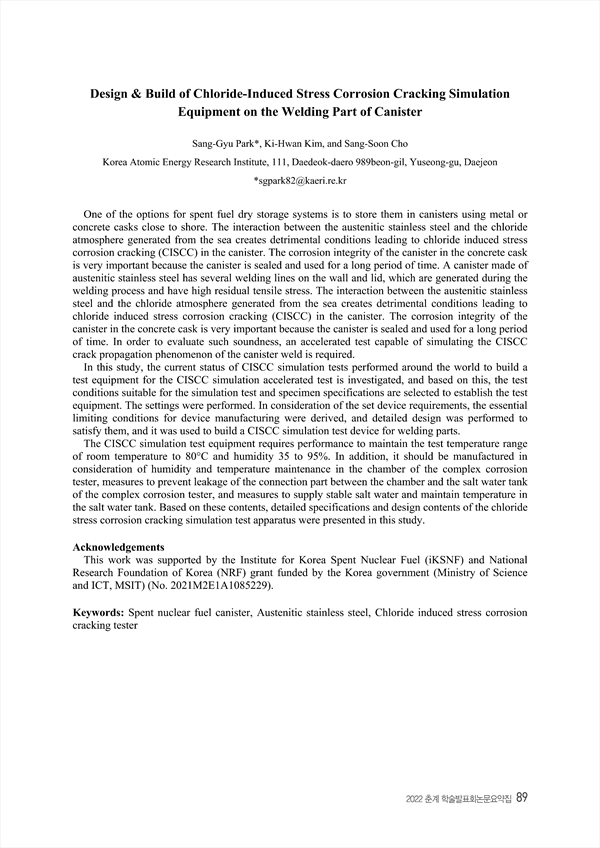

Design & Build of Chloride-Induced Stress Corrosion Cracking Simulation Equipment on the Welding Part of Canister
- 언어ENG
- URLhttps://db.koreascholar.com/Article/Detail/430261
One of the options for spent fuel dry storage systems is to store them in canisters using metal or concrete casks close to shore. The interaction between the austenitic stainless steel and the chloride atmosphere generated from the sea creates detrimental conditions leading to chloride induced stress corrosion cracking (CISCC) in the canister. The corrosion integrity of the canister in the concrete cask is very important because the canister is sealed and used for a long period of time. A canister made of austenitic stainless steel has several welding lines on the wall and lid, which are generated during the welding process and have high residual tensile stress. The interaction between the austenitic stainless steel and the chloride atmosphere generated from the sea creates detrimental conditions leading to chloride induced stress corrosion cracking (CISCC) in the canister. The corrosion integrity of the canister in the concrete cask is very important because the canister is sealed and used for a long period of time. In order to evaluate such soundness, an accelerated test capable of simulating the CISCC crack propagation phenomenon of the canister weld is required. In this study, the current status of CISCC simulation tests performed around the world to build a test equipment for the CISCC simulation accelerated test is investigated, and based on this, the test conditions suitable for the simulation test and specimen specifications are selected to establish the test equipment. The settings were performed. In consideration of the set device requirements, the essential limiting conditions for device manufacturing were derived, and detailed design was performed to satisfy them, and it was used to build a CISCC simulation test device for welding parts. The CISCC simulation test equipment requires performance to maintain the test temperature range of room temperature to 80°C and humidity 35 to 95%. In addition, it should be manufactured in consideration of humidity and temperature maintenance in the chamber of the complex corrosion tester, measures to prevent leakage of the connection part between the chamber and the salt water tank of the complex corrosion tester, and measures to supply stable salt water and maintain temperature in the salt water tank. Based on these contents, detailed specifications and design contents of the chloride stress corrosion cracking simulation test apparatus were presented in this study.
