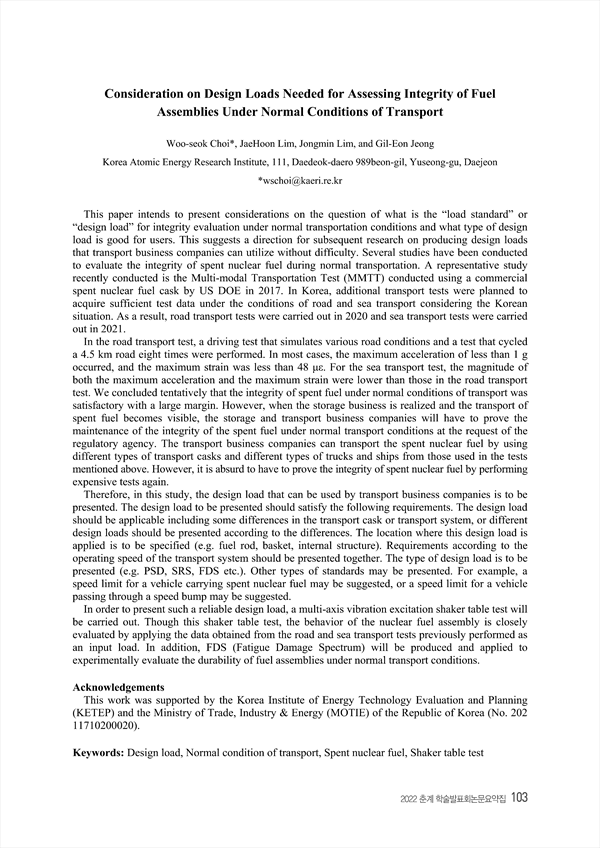

Consideration on Design Loads Needed for Assessing Integrity of Fuel Assemblies Under Normal Conditions of Transport
- 언어ENG
- URLhttps://db.koreascholar.com/Article/Detail/430274
p.103
This paper intends to present considerations on the question of what is the “load standard” or “design load” for integrity evaluation under normal transportation conditions and what type of design load is good for users. This suggests a direction for subsequent research on producing design loads that transport business companies can utilize without difficulty. Several studies have been conducted to evaluate the integrity of spent nuclear fuel during normal transportation. A representative study recently conducted is the Multi-modal Transportation Test (MMTT) conducted using a commercial spent nuclear fuel cask by US DOE in 2017. In Korea, additional transport tests were planned to acquire sufficient test data under the conditions of road and sea transport considering the Korean situation. As a result, road transport tests were carried out in 2020 and sea transport tests were carried out in 2021. In the road transport test, a driving test that simulates various road conditions and a test that cycled a 4.5 km road eight times were performed. In most cases, the maximum acceleration of less than 1 g occurred, and the maximum strain was less than 48 με. For the sea transport test, the magnitude of both the maximum acceleration and the maximum strain were lower than those in the road transport test. We concluded tentatively that the integrity of spent fuel under normal conditions of transport was satisfactory with a large margin. However, when the storage business is realized and the transport of spent fuel becomes visible, the storage and transport business companies will have to prove the maintenance of the integrity of the spent fuel under normal transport conditions at the request of the regulatory agency. The transport business companies can transport the spent nuclear fuel by using different types of transport casks and different types of trucks and ships from those used in the tests mentioned above. However, it is absurd to have to prove the integrity of spent nuclear fuel by performing expensive tests again. Therefore, in this study, the design load that can be used by transport business companies is to be presented. The design load to be presented should satisfy the following requirements. The design load should be applicable including some differences in the transport cask or transport system, or different design loads should be presented according to the differences. The location where this design load is applied is to be specified (e.g. fuel rod, basket, internal structure). Requirements according to the operating speed of the transport system should be presented together. The type of design load is to be presented (e.g. PSD, SRS, FDS etc.). Other types of standards may be presented. For example, a speed limit for a vehicle carrying spent nuclear fuel may be suggested, or a speed limit for a vehicle passing through a speed bump may be suggested. In order to present such a reliable design load, a multi-axis vibration excitation shaker table test will be carried out. Though this shaker table test, the behavior of the nuclear fuel assembly is closely evaluated by applying the data obtained from the road and sea transport tests previously performed as an input load. In addition, FDS (Fatigue Damage Spectrum) will be produced and applied to experimentally evaluate the durability of fuel assemblies under normal transport conditions.
