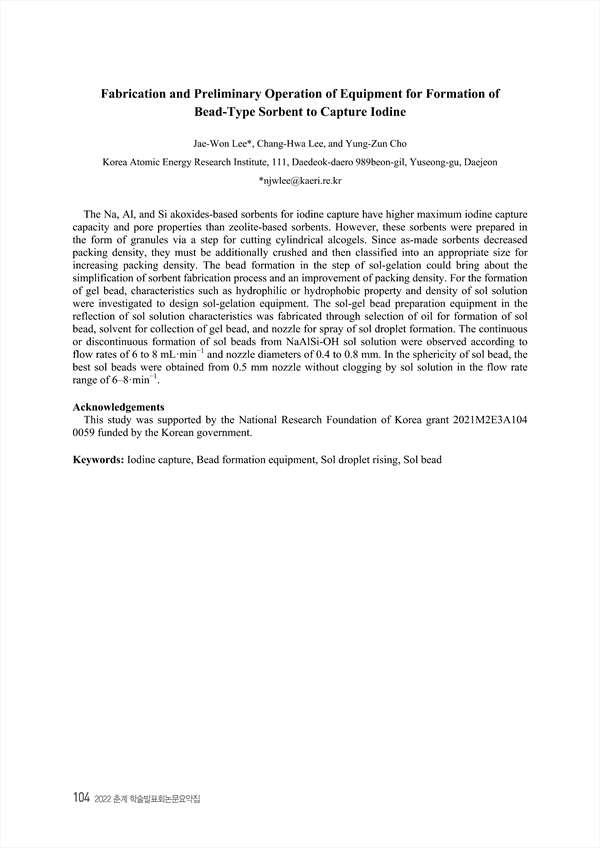

Fabrication and Preliminary Operation of Equipment for Formation of Bead-Type Sorbent to Capture Iodine
p.104
The Na, Al, and Si akoxides-based sorbents for iodine capture have higher maximum iodine capture capacity and pore properties than zeolite-based sorbents. However, these sorbents were prepared in the form of granules via a step for cutting cylindrical alcogels. Since as-made sorbents decreased packing density, they must be additionally crushed and then classified into an appropriate size for increasing packing density. The bead formation in the step of sol-gelation could bring about the simplification of sorbent fabrication process and an improvement of packing density. For the formation of gel bead, characteristics such as hydrophilic or hydrophobic property and density of sol solution were investigated to design sol-gelation equipment. The sol-gel bead preparation equipment in the reflection of sol solution characteristics was fabricated through selection of oil for formation of sol bead, solvent for collection of gel bead, and nozzle for spray of sol droplet formation. The continuous or discontinuous formation of sol beads from NaAlSi-OH sol solution were observed according to flow rates of 6 to 8 mL·min−1 and nozzle diameters of 0.4 to 0.8 mm. In the sphericity of sol bead, the best sol beads were obtained from 0.5 mm nozzle without clogging by sol solution in the flow rate range of 6–8·min−1.
