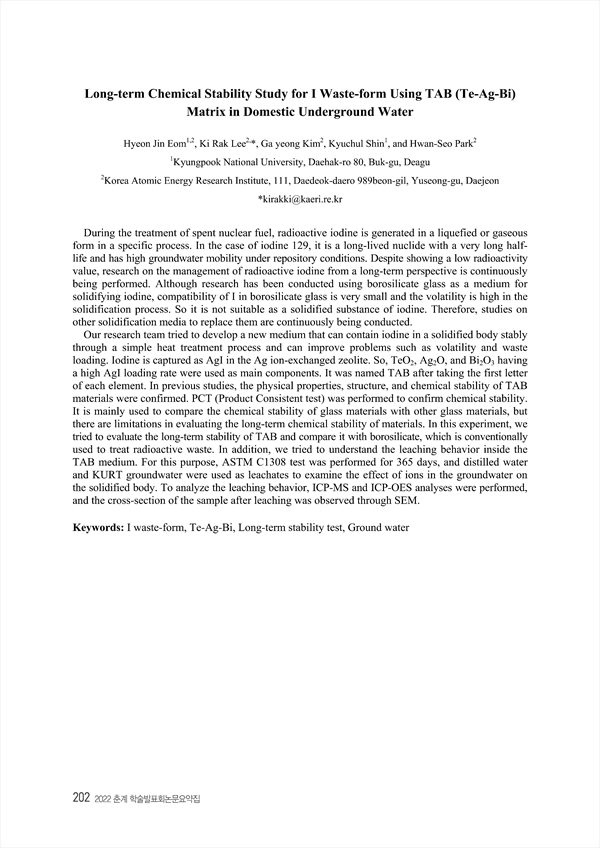

During the treatment of spent nuclear fuel, radioactive iodine is generated in a liquefied or gaseous form in a specific process. In the case of iodine 129, it is a long-lived nuclide with a very long halflife and has high groundwater mobility under repository conditions. Despite showing a low radioactivity value, research on the management of radioactive iodine from a long-term perspective is continuously being performed. Although research has been conducted using borosilicate glass as a medium for solidifying iodine, compatibility of I in borosilicate glass is very small and the volatility is high in the solidification process. So it is not suitable as a solidified substance of iodine. Therefore, studies on other solidification media to replace them are continuously being conducted. Our research team tried to develop a new medium that can contain iodine in a solidified body stably through a simple heat treatment process and can improve problems such as volatility and waste loading. Iodine is captured as AgI in the Ag ion-exchanged zeolite. So, TeO2, Ag2O, and Bi2O3 having a high AgI loading rate were used as main components. It was named TAB after taking the first letter of each element. In previous studies, the physical properties, structure, and chemical stability of TAB materials were confirmed. PCT (Product Consistent test) was performed to confirm chemical stability. It is mainly used to compare the chemical stability of glass materials with other glass materials, but there are limitations in evaluating the long-term chemical stability of materials. In this experiment, we tried to evaluate the long-term stability of TAB and compare it with borosilicate, which is conventionally used to treat radioactive waste. In addition, we tried to understand the leaching behavior inside the TAB medium. For this purpose, ASTM C1308 test was performed for 365 days, and distilled water and KURT groundwater were used as leachates to examine the effect of ions in the groundwater on the solidified body. To analyze the leaching behavior, ICP-MS and ICP-OES analyses were performed, and the cross-section of the sample after leaching was observed through SEM.

• Hyeon Jin Eom(Kyungpook National University, Daehak-ro 80, Buk-gu, Deagu, Korea Atomic Energy Research Institute, 111, Daedeok-daero 989beon-gil, Yuseong-gu, Daejeon)
• Ki Rak Lee(Korea Atomic Energy Research Institute, 111, Daedeok-daero 989beon-gil, Yuseong-gu, Daejeon) Corresponding author
• Ga yeong Kim(Korea Atomic Energy Research Institute, 111, Daedeok-daero 989beon-gil, Yuseong-gu, Daejeon)
• Kyuchul Shin(Kyungpook National University, Daehak-ro 80, Buk-gu, Deagu)
• Hwan-Seo Park(Korea Atomic Energy Research Institute, 111, Daedeok-daero 989beon-gil, Yuseong-gu, Daejeon)
