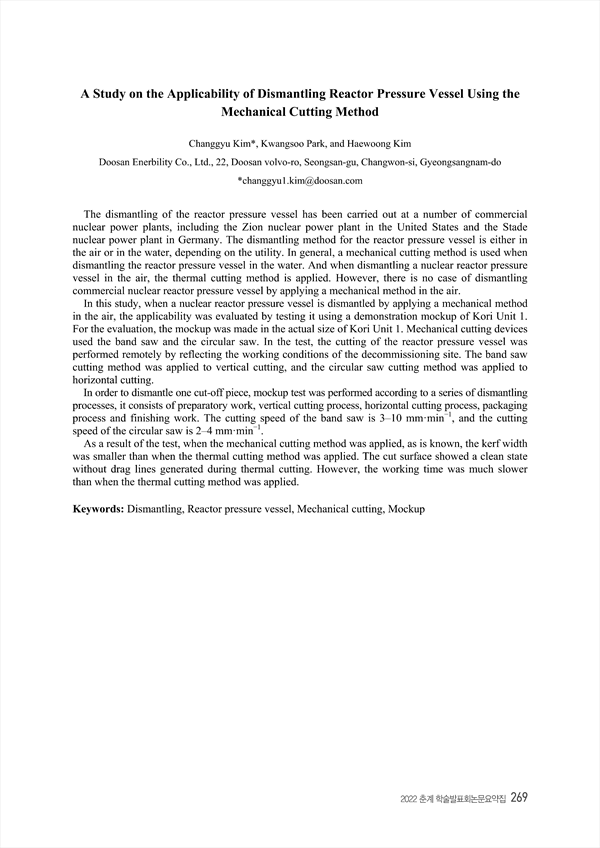

A Study on the Applicability of Dismantling Reactor Pressure Vessel Using the Mechanical Cutting Method
- 언어ENG
- URLhttps://db.koreascholar.com/Article/Detail/430565
p.269
The dismantling of the reactor pressure vessel has been carried out at a number of commercial nuclear power plants, including the Zion nuclear power plant in the United States and the Stade nuclear power plant in Germany. The dismantling method for the reactor pressure vessel is either in the air or in the water, depending on the utility. In general, a mechanical cutting method is used when dismantling the reactor pressure vessel in the water. And when dismantling a nuclear reactor pressure vessel in the air, the thermal cutting method is applied. However, there is no case of dismantling commercial nuclear reactor pressure vessel by applying a mechanical method in the air. In this study, when a nuclear reactor pressure vessel is dismantled by applying a mechanical method in the air, the applicability was evaluated by testing it using a demonstration mockup of Kori Unit 1. For the evaluation, the mockup was made in the actual size of Kori Unit 1. Mechanical cutting devices used the band saw and the circular saw. In the test, the cutting of the reactor pressure vessel was performed remotely by reflecting the working conditions of the decommissioning site. The band saw cutting method was applied to vertical cutting, and the circular saw cutting method was applied to horizontal cutting. In order to dismantle one cut-off piece, mockup test was performed according to a series of dismantling processes, it consists of preparatory work, vertical cutting process, horizontal cutting process, packaging process and finishing work. The cutting speed of the band saw is 3–10 mm·min−1, and the cutting speed of the circular saw is 2–4 mm·min−1. As a result of the test, when the mechanical cutting method was applied, as is known, the kerf width was smaller than when the thermal cutting method was applied. The cut surface showed a clean state without drag lines generated during thermal cutting. However, the working time was much slower than when the thermal cutting method was applied.
