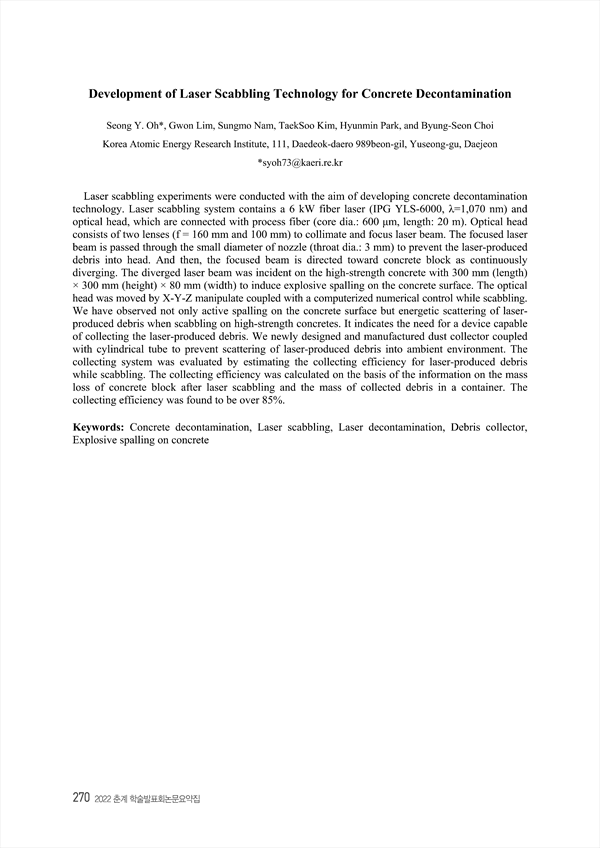

Development of Laser Scabbling Technology for Concrete Decontamination
- 언어ENG
- URLhttps://db.koreascholar.com/Article/Detail/430566
p.270
Laser scabbling experiments were conducted with the aim of developing concrete decontamination technology. Laser scabbling system contains a 6 kW fiber laser (IPG YLS-6000, λ=1,070 nm) and optical head, which are connected with process fiber (core dia.: 600 μm, length: 20 m). Optical head consists of two lenses (f = 160 mm and 100 mm) to collimate and focus laser beam. The focused laser beam is passed through the small diameter of nozzle (throat dia.: 3 mm) to prevent the laser-produced debris into head. And then, the focused beam is directed toward concrete block as continuously diverging. The diverged laser beam was incident on the high-strength concrete with 300 mm (length) × 300 mm (height) × 80 mm (width) to induce explosive spalling on the concrete surface. The optical head was moved by X-Y-Z manipulate coupled with a computerized numerical control while scabbling. We have observed not only active spalling on the concrete surface but energetic scattering of laserproduced debris when scabbling on high-strength concretes. It indicates the need for a device capable of collecting the laser-produced debris. We newly designed and manufactured dust collector coupled with cylindrical tube to prevent scattering of laser-produced debris into ambient environment. The collecting system was evaluated by estimating the collecting efficiency for laser-produced debris while scabbling. The collecting efficiency was calculated on the basis of the information on the mass loss of concrete block after laser scabbling and the mass of collected debris in a container. The collecting efficiency was found to be over 85%.
