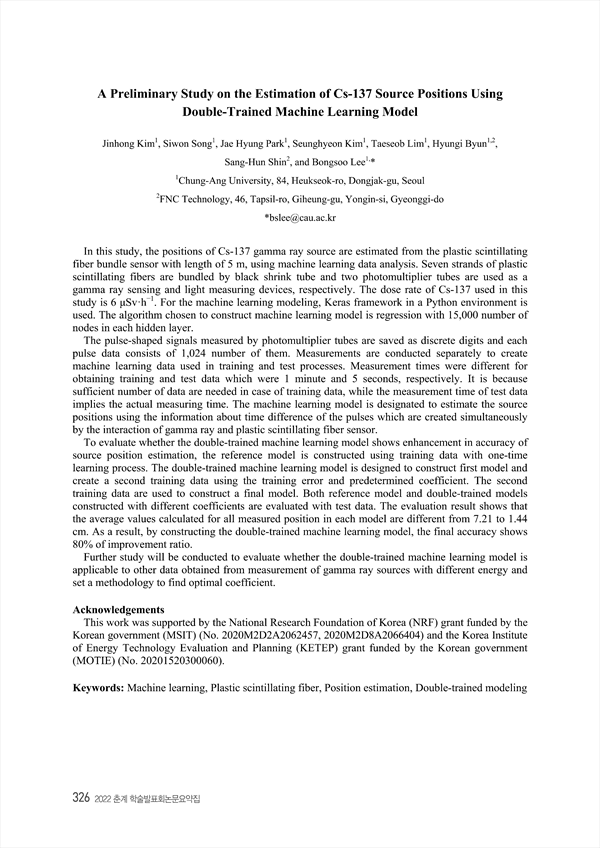

A Preliminary Study on the Estimation of Cs-137 Source Positions Using Double-Trained Machine Learning Model
- 언어ENG
- URLhttps://db.koreascholar.com/Article/Detail/430618
p.326
In this study, the positions of Cs-137 gamma ray source are estimated from the plastic scintillating fiber bundle sensor with length of 5 m, using machine learning data analysis. Seven strands of plastic scintillating fibers are bundled by black shrink tube and two photomultiplier tubes are used as a gamma ray sensing and light measuring devices, respectively. The dose rate of Cs-137 used in this study is 6 μSv·h−1. For the machine learning modeling, Keras framework in a Python environment is used. The algorithm chosen to construct machine learning model is regression with 15,000 number of nodes in each hidden layer. The pulse-shaped signals measured by photomultiplier tubes are saved as discrete digits and each pulse data consists of 1,024 number of them. Measurements are conducted separately to create machine learning data used in training and test processes. Measurement times were different for obtaining training and test data which were 1 minute and 5 seconds, respectively. It is because sufficient number of data are needed in case of training data, while the measurement time of test data implies the actual measuring time. The machine learning model is designated to estimate the source positions using the information about time difference of the pulses which are created simultaneously by the interaction of gamma ray and plastic scintillating fiber sensor. To evaluate whether the double-trained machine learning model shows enhancement in accuracy of source position estimation, the reference model is constructed using training data with one-time learning process. The double-trained machine learning model is designed to construct first model and create a second training data using the training error and predetermined coefficient. The second training data are used to construct a final model. Both reference model and double-trained models constructed with different coefficients are evaluated with test data. The evaluation result shows that the average values calculated for all measured position in each model are different from 7.21 to 1.44 cm. As a result, by constructing the double-trained machine learning model, the final accuracy shows 80% of improvement ratio. Further study will be conducted to evaluate whether the double-trained machine learning model is applicable to other data obtained from measurement of gamma ray sources with different energy and set a methodology to find optimal coefficient.
