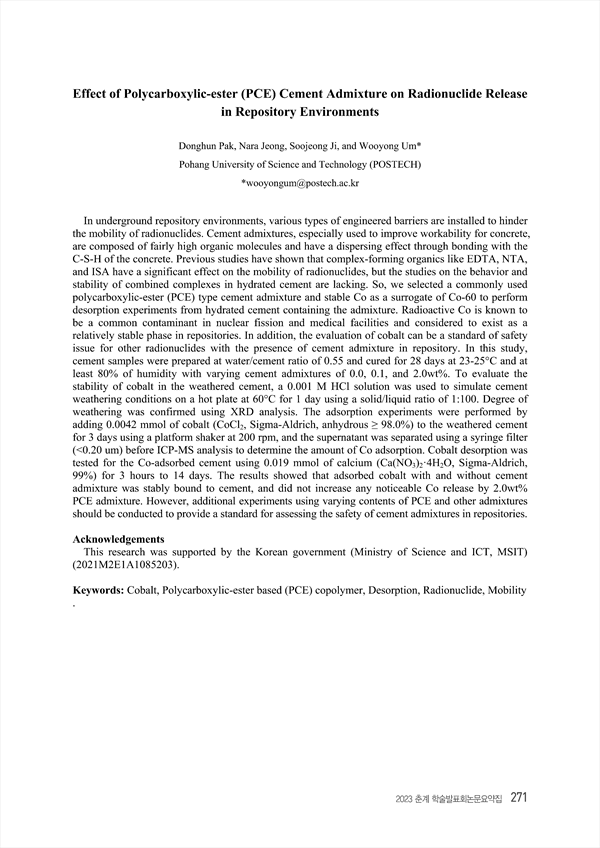

In underground repository environments, various types of engineered barriers are installed to hinder the mobility of radionuclides. Cement admixtures, especially used to improve workability for concrete, are composed of fairly high organic molecules and have a dispersing effect through bonding with the C-S-H of the concrete. Previous studies have shown that complex-forming organics like EDTA, NTA, and ISA have a significant effect on the mobility of radionuclides, but the studies on the behavior and stability of combined complexes in hydrated cement are lacking. So, we selected a commonly used polycarboxylic-ester (PCE) type cement admixture and stable Co as a surrogate of Co-60 to perform desorption experiments from hydrated cement containing the admixture. Radioactive Co is known to be a common contaminant in nuclear fission and medical facilities and considered to exist as a relatively stable phase in repositories. In addition, the evaluation of cobalt can be a standard of safety issue for other radionuclides with the presence of cement admixture in repository. In this study, cement samples were prepared at water/cement ratio of 0.55 and cured for 28 days at 23-25°C and at least 80% of humidity with varying cement admixtures of 0.0, 0.1, and 2.0wt%. To evaluate the stability of cobalt in the weathered cement, a 0.001 M HCl solution was used to simulate cement weathering conditions on a hot plate at 60°C for 1 day using a solid/liquid ratio of 1:100. Degree of weathering was confirmed using XRD analysis. The adsorption experiments were performed by adding 0.0042 mmol of cobalt (CoCl2, Sigma-Aldrich, anhydrous ≥ 98.0%) to the weathered cement for 3 days using a platform shaker at 200 rpm, and the supernatant was separated using a syringe filter (<0.20 um) before ICP-MS analysis to determine the amount of Co adsorption. Cobalt desorption was tested for the Co-adsorbed cement using 0.019 mmol of calcium (Ca(NO3)2·4H2O, Sigma-Aldrich, 99%) for 3 hours to 14 days. The results showed that adsorbed cobalt with and without cement admixture was stably bound to cement, and did not increase any noticeable Co release by 2.0wt% PCE admixture. However, additional experiments using varying contents of PCE and other admixtures should be conducted to provide a standard for assessing the safety of cement admixtures in repositories.

• Donghun Pak(Pohang University of Science and Technology (POSTECH))
• Nara Jeong(Pohang University of Science and Technology (POSTECH))
• Soojeong Ji(Pohang University of Science and Technology (POSTECH))
• Wooyong Um(Pohang University of Science and Technology (POSTECH)) Corresponding author
