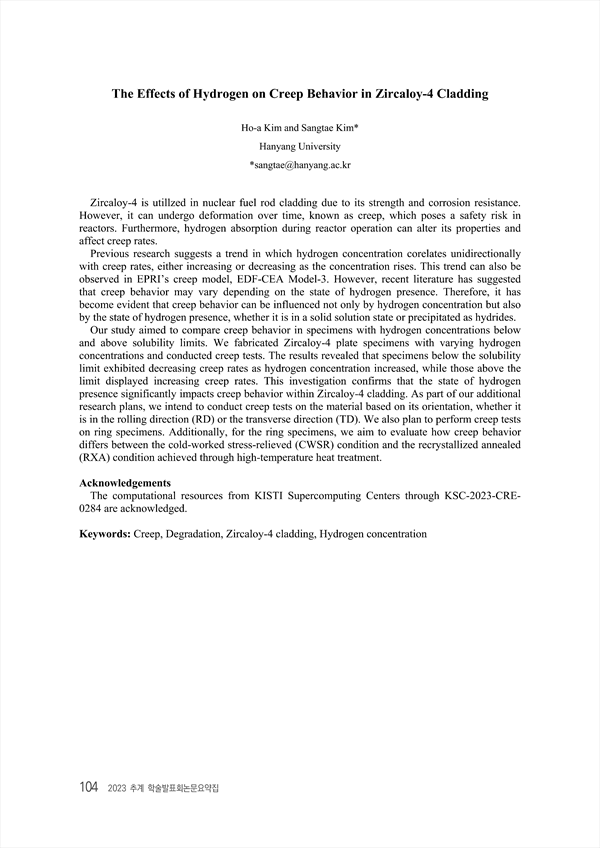

Zircaloy-4 is utillzed in nuclear fuel rod cladding due to its strength and corrosion resistance. However, it can undergo deformation over time, known as creep, which poses a safety risk in reactors. Furthermore, hydrogen absorption during reactor operation can alter its properties and affect creep rates. Previous research suggests a trend in which hydrogen concentration corelates unidirectionally with creep rates, either increasing or decreasing as the concentration rises. This trend can also be observed in EPRI’s creep model, EDF-CEA Model-3. However, recent literature has suggested that creep behavior may vary depending on the state of hydrogen presence. Therefore, it has become evident that creep behavior can be influenced not only by hydrogen concentration but also by the state of hydrogen presence, whether it is in a solid solution state or precipitated as hydrides. Our study aimed to compare creep behavior in specimens with hydrogen concentrations below and above solubility limits. We fabricated Zircaloy-4 plate specimens with varying hydrogen concentrations and conducted creep tests. The results revealed that specimens below the solubility limit exhibited decreasing creep rates as hydrogen concentration increased, while those above the limit displayed increasing creep rates. This investigation confirms that the state of hydrogen presence significantly impacts creep behavior within Zircaloy-4 cladding. As part of our additional research plans, we intend to conduct creep tests on the material based on its orientation, whether it is in the rolling direction (RD) or the transverse direction (TD). We also plan to perform creep tests on ring specimens. Additionally, for the ring specimens, we aim to evaluate how creep behavior differs between the cold-worked stress-relieved (CWSR) condition and the recrystallized annealed (RXA) condition achieved through high-temperature heat treatment.

• Ho-a Kim(Hanyang University)
• Sangtae Kim(Hanyang University) Corresponding author
