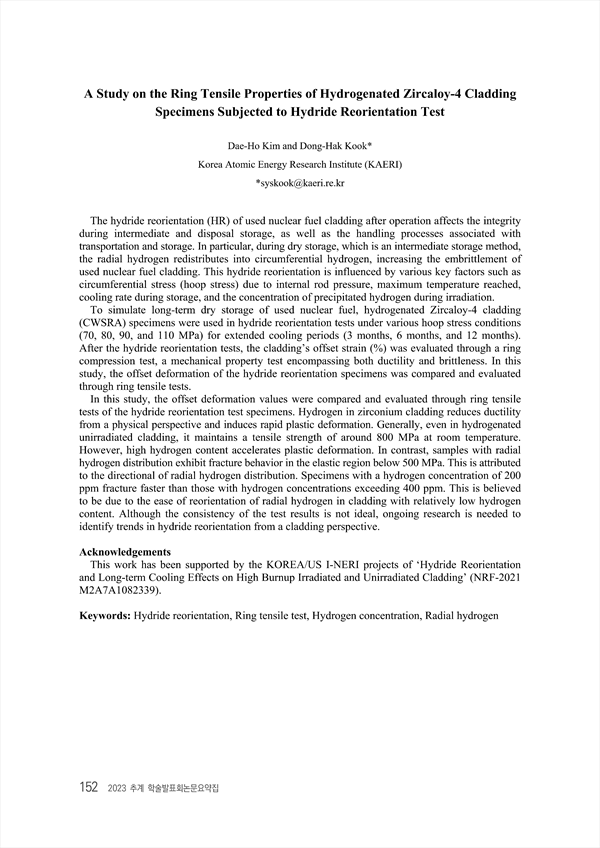

A Study on the Ring Tensile Properties of Hydrogenated Zircaloy-4 Cladding Specimens Subjected to Hydride Reorientation Test
p.152
The hydride reorientation (HR) of used nuclear fuel cladding after operation affects the integrity during intermediate and disposal storage, as well as the handling processes associated with transportation and storage. In particular, during dry storage, which is an intermediate storage method, the radial hydrogen redistributes into circumferential hydrogen, increasing the embrittlement of used nuclear fuel cladding. This hydride reorientation is influenced by various key factors such as circumferential stress (hoop stress) due to internal rod pressure, maximum temperature reached, cooling rate during storage, and the concentration of precipitated hydrogen during irradiation. To simulate long-term dry storage of used nuclear fuel, hydrogenated Zircaloy-4 cladding (CWSRA) specimens were used in hydride reorientation tests under various hoop stress conditions (70, 80, 90, and 110 MPa) for extended cooling periods (3 months, 6 months, and 12 months). After the hydride reorientation tests, the cladding’s offset strain (%) was evaluated through a ring compression test, a mechanical property test encompassing both ductility and brittleness. In this study, the offset deformation of the hydride reorientation specimens was compared and evaluated through ring tensile tests. In this study, the offset deformation values were compared and evaluated through ring tensile tests of the hydride reorientation test specimens. Hydrogen in zirconium cladding reduces ductility from a physical perspective and induces rapid plastic deformation. Generally, even in hydrogenated unirradiated cladding, it maintains a tensile strength of around 800 MPa at room temperature. However, high hydrogen content accelerates plastic deformation. In contrast, samples with radial hydrogen distribution exhibit fracture behavior in the elastic region below 500 MPa. This is attributed to the directional of radial hydrogen distribution. Specimens with a hydrogen concentration of 200 ppm fracture faster than those with hydrogen concentrations exceeding 400 ppm. This is believed to be due to the ease of reorientation of radial hydrogen in cladding with relatively low hydrogen content. Although the consistency of the test results is not ideal, ongoing research is needed to identify trends in hydride reorientation from a cladding perspective.
