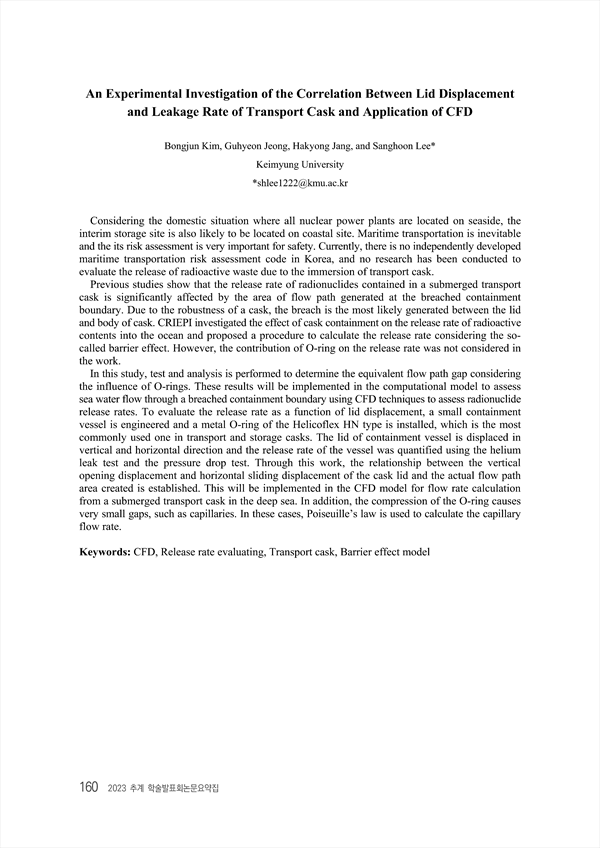

Considering the domestic situation where all nuclear power plants are located on seaside, the interim storage site is also likely to be located on coastal site. Maritime transportation is inevitable and the its risk assessment is very important for safety. Currently, there is no independently developed maritime transportation risk assessment code in Korea, and no research has been conducted to evaluate the release of radioactive waste due to the immersion of transport cask. Previous studies show that the release rate of radionuclides contained in a submerged transport cask is significantly affected by the area of flow path generated at the breached containment boundary. Due to the robustness of a cask, the breach is the most likely generated between the lid and body of cask. CRIEPI investigated the effect of cask containment on the release rate of radioactive contents into the ocean and proposed a procedure to calculate the release rate considering the socalled barrier effect. However, the contribution of O-ring on the release rate was not considered in the work. In this study, test and analysis is performed to determine the equivalent flow path gap considering the influence of O-rings. These results will be implemented in the computational model to assess sea water flow through a breached containment boundary using CFD techniques to assess radionuclide release rates. To evaluate the release rate as a function of lid displacement, a small containment vessel is engineered and a metal O-ring of the Helicoflex HN type is installed, which is the most commonly used one in transport and storage casks. The lid of containment vessel is displaced in vertical and horizontal direction and the release rate of the vessel was quantified using the helium leak test and the pressure drop test. Through this work, the relationship between the vertical opening displacement and horizontal sliding displacement of the cask lid and the actual flow path area created is established. This will be implemented in the CFD model for flow rate calculation from a submerged transport cask in the deep sea. In addition, the compression of the O-ring causes very small gaps, such as capillaries. In these cases, Poiseuille’s law is used to calculate the capillary flow rate.

• Bongjun Kim(Keimyung University)
• Guhyeon Jeong(Keimyung University)
• Hakyong Jang(Keimyung University)
• Sanghoon Lee(Keimyung University) Corresponding author
