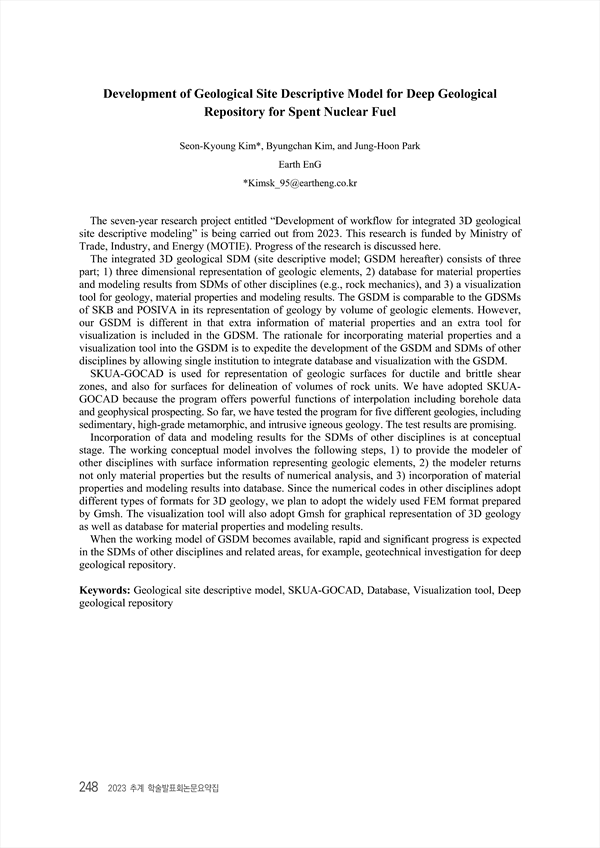

The seven-year research project entitled “Development of workflow for integrated 3D geological site descriptive modeling” is being carried out from 2023. This research is funded by Ministry of Trade, Industry, and Energy (MOTIE). Progress of the research is discussed here. The integrated 3D geological SDM (site descriptive model; GSDM hereafter) consists of three part; 1) three dimensional representation of geologic elements, 2) database for material properties and modeling results from SDMs of other disciplines (e.g., rock mechanics), and 3) a visualization tool for geology, material properties and modeling results. The GSDM is comparable to the GDSMs of SKB and POSIVA in its representation of geology by volume of geologic elements. However, our GSDM is different in that extra information of material properties and an extra tool for visualization is included in the GDSM. The rationale for incorporating material properties and a visualization tool into the GSDM is to expedite the development of the GSDM and SDMs of other disciplines by allowing single institution to integrate database and visualization with the GSDM. SKUA-GOCAD is used for representation of geologic surfaces for ductile and brittle shear zones, and also for surfaces for delineation of volumes of rock units. We have adopted SKUAGOCAD because the program offers powerful functions of interpolation including borehole data and geophysical prospecting. So far, we have tested the program for five different geologies, including sedimentary, high-grade metamorphic, and intrusive igneous geology. The test results are promising. Incorporation of data and modeling results for the SDMs of other disciplines is at conceptual stage. The working conceptual model involves the following steps, 1) to provide the modeler of other disciplines with surface information representing geologic elements, 2) the modeler returns not only material properties but the results of numerical analysis, and 3) incorporation of material properties and modeling results into database. Since the numerical codes in other disciplines adopt different types of formats for 3D geology, we plan to adopt the widely used FEM format prepared by Gmsh. The visualization tool will also adopt Gmsh for graphical representation of 3D geology as well as database for material properties and modeling results. When the working model of GSDM becomes available, rapid and significant progress is expected in the SDMs of other disciplines and related areas, for example, geotechnical investigation for deep geological repository.

• Seon-Kyoung Kim(Earth EnG) Corresponding author
• Byungchan Kim(Earth EnG)
• Jung-Hoon Park(Earth EnG)
