pp.305-310

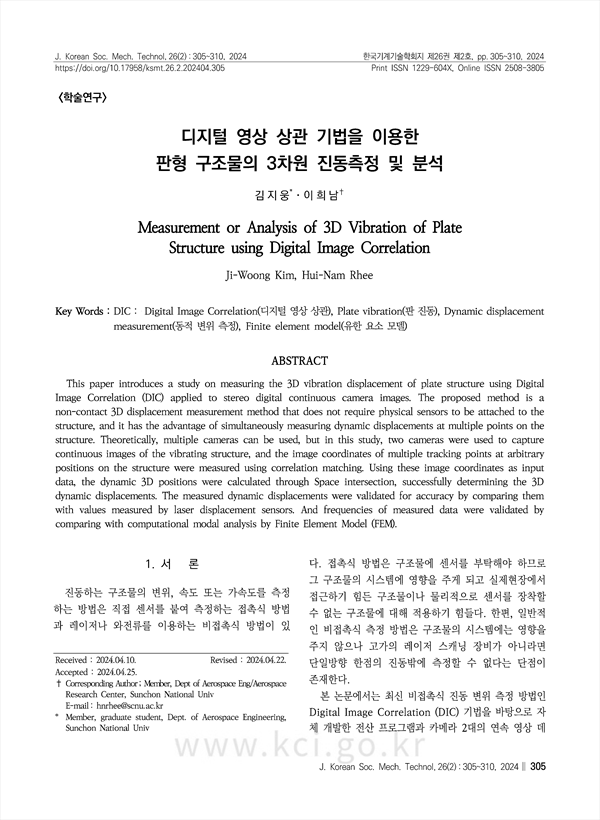

This paper introduces a study on measuring the 3D vibration displacement of plate structure using Digital Image Correlation (DIC) applied to stereo digital continuous camera images. The proposed method is a non-contact 3D displacement measurement method that does not require physical sensors to be attached to the structure, and it has the advantage of simultaneously measuring dynamic displacements at multiple points on the structure. Theoretically, multiple cameras can be used, but in this study, two cameras were used to capture continuous images of the vibrating structure, and the image coordinates of multiple tracking points at arbitrary positions on the structure were measured using correlation matching. Using these image coordinates as input data, the dynamic 3D positions were calculated through Space intersection, successfully determining the 3D dynamic displacements. The measured dynamic displacements were validated for accuracy by comparing them with values measured by laser displacement sensors. And frequencies of measured data were validated by comparing with computational modal analysis by Finite Element Model (FEM).
