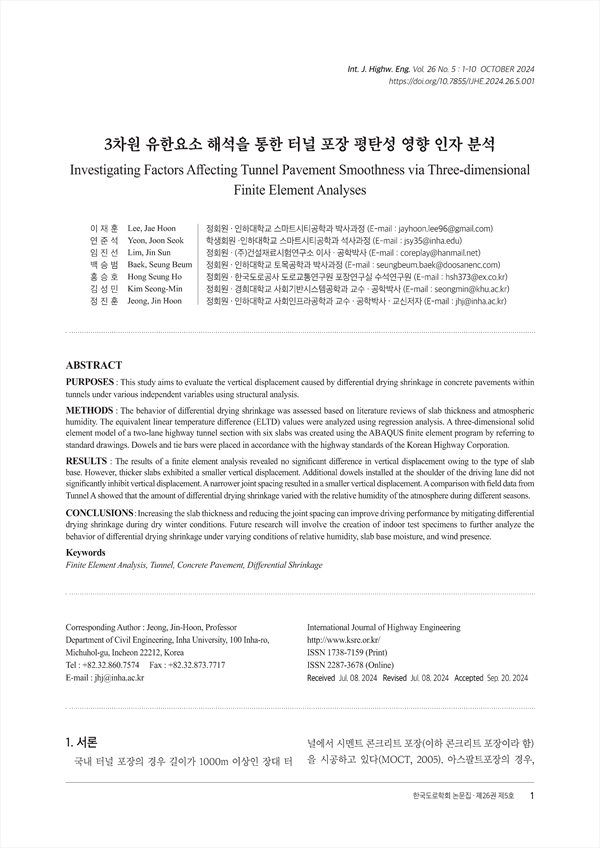

3차원 유한요소 해석을 통한 터널 포장 평탄성 영향 인자 분석 KCI 등재

Investigating Factors Affecting Tunnel Pavement Smoothness via Three-dimensional Finite Element Analyses

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/437060
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
한국도로학회논문집 (International journal of highway engineering)
한국도로학회 (Korean Society of Road Engineers)
초록

PURPOSES : This study aims to evaluate the vertical displacement caused by differential drying shrinkage in concrete pavements within tunnels under various independent variables using structural analysis. METHODS : The behavior of differential drying shrinkage was assessed based on literature reviews of slab thickness and atmospheric humidity. The equivalent linear temperature difference (ELTD) values were analyzed using regression analysis. A three-dimensional solid element model of a two-lane highway tunnel section with six slabs was created using the ABAQUS finite element program by referring to standard drawings. Dowels and tie bars were placed in accordance with the highway standards of the Korean Highway Corporation. RESULTS : The results of a finite element analysis revealed no significant difference in vertical displacement owing to the type of slab base. However, thicker slabs exhibited a smaller vertical displacement. Additional dowels installed at the shoulder of the driving lane did not significantly inhibit vertical displacement. A narrower joint spacing resulted in a smaller vertical displacement. A comparison with field data from Tunnel A showed that the amount of differential drying shrinkage varied with the relative humidity of the atmosphere during different seasons. CONCLUSIONS : Increasing the slab thickness and reducing the joint spacing can improve driving performance by mitigating differential drying shrinkage during dry winter conditions. Future research will involve the creation of indoor test specimens to further analyze the behavior of differential drying shrinkage under varying conditions of relative humidity, slab base moisture, and wind presence.

목차
ABSTRACT
1. 서론
2. 슬래브 거동 특성
    2.1. 터널 콘크리트포장 환경 조건
    2.2. 부등건조수축에 따른 슬래브 거동
3. 구조해석
    3.1. 슬래브 모델링
    3.2. 구조해석 모형 독립변수
4. 구조해석 결과
    4.1. 하부층 종류의 영향
    4.2. 슬래브 두께의 영향
    4.3. 주행차로 다웰바 추가 설치 유무의 영향
    4.4. 줄눈 간격의 영향
    4.5. 복합 변수 적용
    4.6. 현장 데이터 비교분석
5. 결론
감사의 글
REFERENCES
저자
  • 이재훈(인하대학교 스마트시티공학과 박사과정) | Lee Jae Hoon
  • 연준석(인하대학교 스마트시티공학과 석사과정) | Yeon Joon Seok
  • 임진선((주)건설재료시험연구소 이사, 공학박사) | Lim Jin Sun
  • 백승범(인하대학교 토목공학과 박사과정) | Baek Seung Beum
  • 홍승호(한국도로공사 도로교통연구원 포장연구실 수석연구원) | Hong Seung Ho
  • 김성민(경희대학교 사회기반시스템공학과 교수, 공학박사) | Kim Seong-Min
  • 정진훈(인하대학교 사회인프라공학과 교수, 공학박사) | Jeong Jin Hoon Corresponding author
