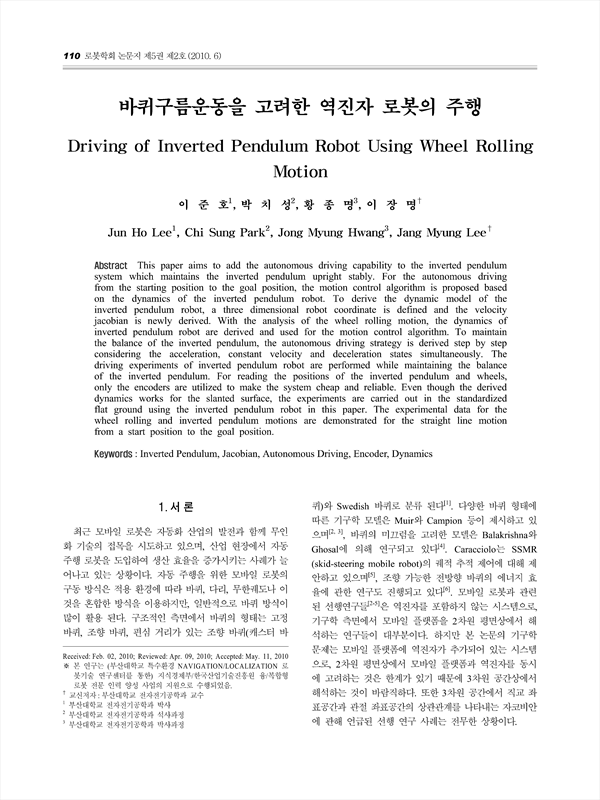

바퀴구름운동을 고려한 역진자 로봇의 주행 KCI 등재

Driving of Inverted Pendulum Robot Using Wheel Rolling Motion

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/1092
서비스가 종료되어 열람이 제한될 수 있습니다.
로봇학회논문지 (The Journal of Korea Robotics Society)
한국로봇학회 (Korea Robotics Society)
초록

This paper aims to add the autonomous driving capability to the inverted pendulum system which maintains the inverted pendulum upright stably. For the autonomous driving from the starting position to the goal position, the motion control algorithm is proposed based on the dynamics of the inverted pendulum robot. To derive the dynamic model of the inverted pendulum robot, a three dimensional robot coordinate is defined and the velocity jacobian is newly derived. With the analysis of the wheel rolling motion, the dynamics of inverted pendulum robot are derived and used for the motion control algorithm. To maintain the balance of the inverted pendulum, the autonomous driving strategy is derived step by step considering the acceleration, constant velocity and deceleration states simultaneously. The driving experiments of inverted pendulum robot are performed while maintaining the balance of the inverted pendulum. For reading the positions of the inverted pendulum and wheels, only the encoders are utilized to make the system cheap and reliable. Even though the derived dynamics works for the slanted surface, the experiments are carried out in the standardized flat ground using the inverted pendulum robot in this paper. The experimental data for the wheel rolling and inverted pendulum motions are demonstrated for the straight line motion from a start position to the goal position.

저자
  • 이준호 | Lee Jun-Ho
  • 박치성 | Park Chi-Sung
  • 황종명 | Hwang Jong-Myung
  • 이장명 | Lee Jang-Myung
