편망 후 열처리 온도가 PBS 모노필라멘트사의 물리적 특성에 미치는 영향 KCI 등재

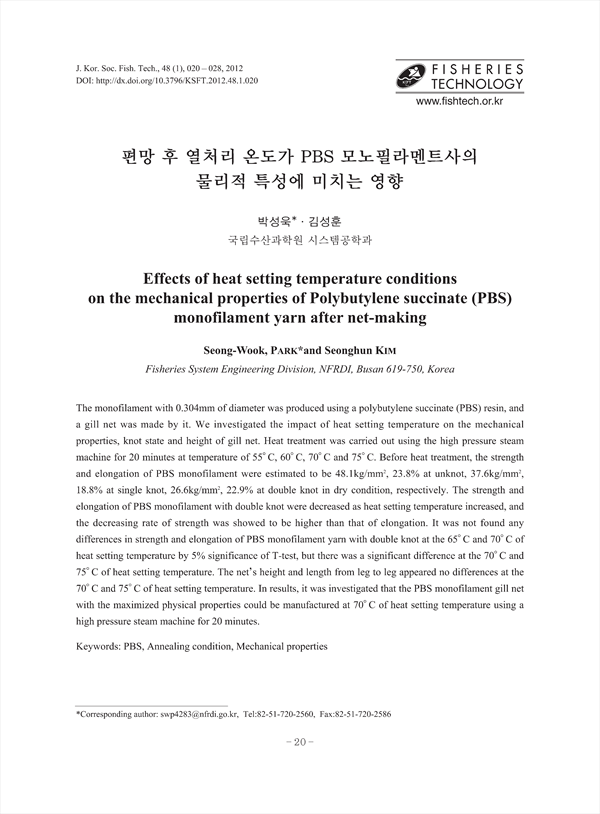

Effects of heat setting temperature conditions on the mechanical properties of Polybutylene succinate (PBS) monofilament yarn after net-making

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/256746
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
수산해양기술연구 (Journal of the Korean Society of Fisheries and Ocean Technology)
한국수산해양기술학회(구 한국어업기술학회) (The Korean Society of Fisheriers and Ocean Technology)
초록

The monofilament with 0.304mm of diameter was produced using a polybutylene succinate (PBS) resin, and a gill net was made by it. We investigated the impact of heat setting temperature on the mechanical properties, knot state and height of gill net. Heat treatment was carried out using the high pressure steam machine for 20 minutes at temperature of 55℃, 60℃, 70℃ and 75℃. Before heat treatment, the strength and elongation of PBS monofilament were estimated to be 48.1kg/mm2, 23.8% at unknot, 37.6kg/mm2, 18.8% at single knot, 26.6kg/mm2, 22.9% at double knot in dry condition, respectively. The strength and elongation of PBS monofilament with double knot were decreased as heat setting temperature increased, and the decreasing rate of strength was showed to be higher than that of elongation. It was not found any differences in strength and elongation of PBS monofilament yarn with double knot at the 65℃ and 70℃ of heat setting temperature by 5% significance of T-test, but there was a significant difference at the 70℃ and 75℃ of heat setting temperature. The net's height and length from leg to leg appeared no differences at the 70℃ and 75℃ of heat setting temperature. In results, it was investigated that the PBS monofilament gill net with the maximized physical properties could be manufactured at 70℃ of heat setting temperature using a high pressure steam machine for 20 minutes.

저자
  • 박성욱 | Park, Seong-Wook
  • 김성훈 | Kim, Seong-Hun
