pp.221-226

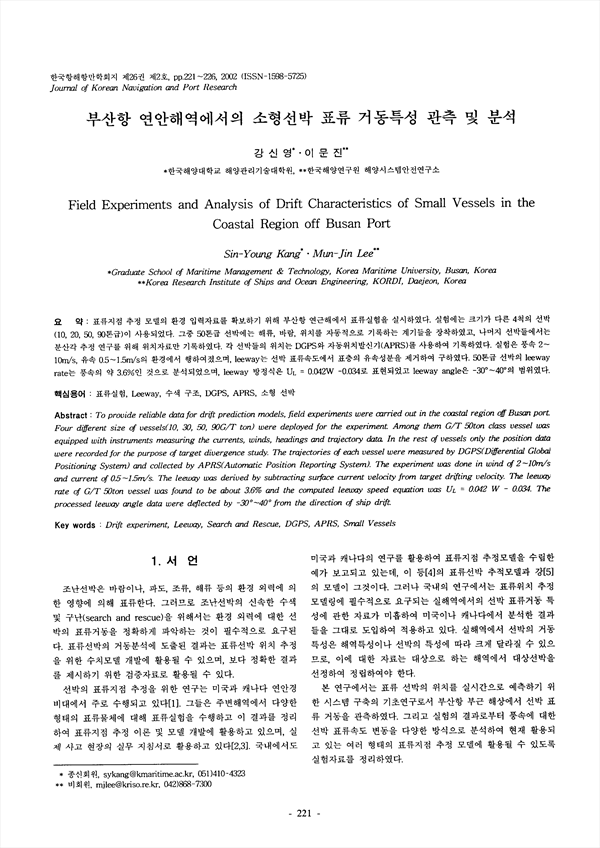

표류지점 추정 모델의 환경 입력자료를 확보하기 위해 부산항 연근해에서 표류실험을 실시하였다. 실험에는 크기가 다른 4척의 선박(10, 20, 50, 90톤급)이 사용되었다. 그중 50톤급 선박에는 해류, 바람, 위치를 자동적으로 기록하는 계기들을 장착하였고, 나머지 선박들에서는 분산각 추정 연구를 위해 위치자료만 기록하였다. 각 선박들의 위치는 DGPS와 자동위치발신기(APRS)를 사용하여 기록하였다. 실험은 풍속 2~10m/s, 유속 0.5~1.5m/s의 환경에서 행하여졌으며, leeway는 선박 표류속도에서 표층의 유속성분을 제거하여 구하였다. 50톤급 선박의 leeway rate는 풍속의 약 3.6%인 것으로 분석되었으며, leeway 방정식은 UL =0.042W -0.034로 표현되었고 leeway angle은 -30˚~40˚의 범위였다.
To provide reliable data for drift prediction models, field experiments were carried out in the coastal region off Busan port. Four different size of vessels(10, 30, 50, 90G/T ton) were deployed for the experiment. Among them G/T 50ton class vessel was equipped with instruments measuring the currents, winds, headings and trajectory data. In the rest of vessels only the position data were recorded for the purpose of target divergence study. The trajectories of each vessel were measured by DGPS(Differential Global Positioning System) and collected by APRS(Automatic Position Reporting System). The experiment was done in wind of 2~10m/s and current of 0.5~1.5m/s. The leeway was derived by subtracting surface current velocity from target drifting velocity. The leeway rate of G/T 50ton vessel was found to be about 3.6% and the computed leeway speed equation was UL=0.042 W - 0.034. The processed leeway angle data were deflected by -30˚~40˚ from the direction of ship drift.
