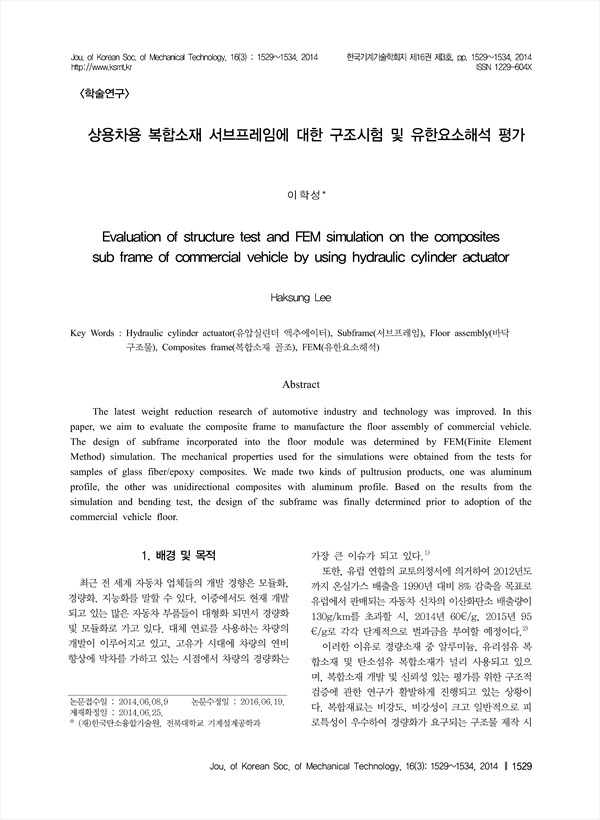

상용차용 복합소재 서브프레임에 대한 구조시험 및 유한요소해석 평가 KCI 등재

Evaluation of structure test and FEM simulation on the composites sub frame of commercial vehicle by using hydraulic cylinder actuator

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/291841
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
한국기계기술학회지 (Journal of the Korean Society of Mechanical Technology)
한국기계기술학회 (Korean Society of Mechanical Technology)
초록

The latest weight reduction research of automotive industry and technology was improved. In this paper, we aim to evaluate the composite frame to manufacture the floor assembly of commercial vehicle. The design of subframe incorporated into the floor module was determined by FEM(Finite Element Method) simulation. The mechanical properties used for the simulations were obtained from the tests for samples of glass fiber/epoxy composites. We made two kinds of pultrusion products, one was aluminum profile, the other was unidirectional composites with aluminum profile. Based on the results from the simulation and bending test, the design of the subframe was finally determined prior to adoption of the commercial vehicle floor.

목차
Abstract
 1. 배경 및 목적
 2. 시험
  2.1 시험조건
  2.2 물성시험
 3. 해석
  3.1 해석조건
 4. 결과 및 고찰
  4.1 시험에 대한 고찰
  4.2 해석에 대한 고찰
 5. 결론
 References
저자
  • 이학성((재)한국탄소융합기술원, 전북대학교 기계설계공학과) | Haksung Lee
