논문 상세보기
pp.252-256

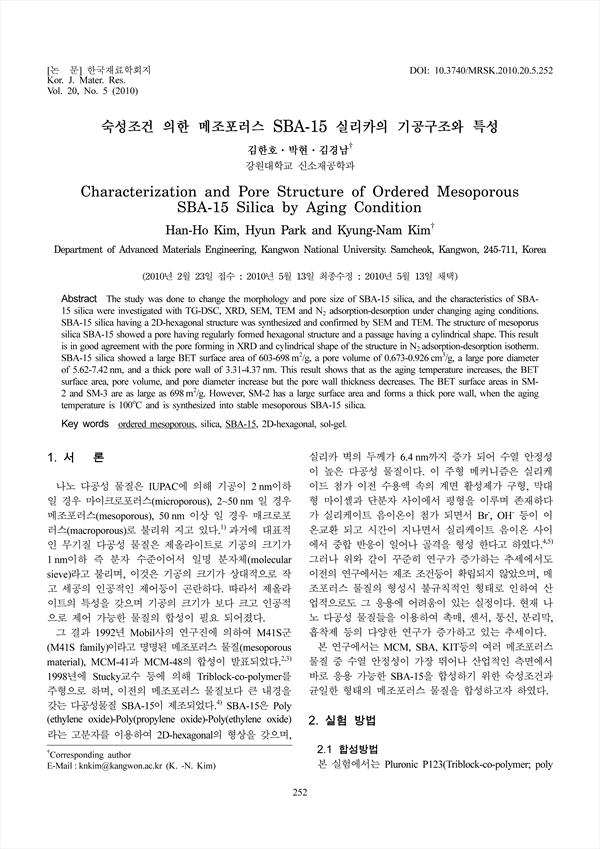

The study was done to change the morphology and pore size of SBA-15 silica, and the characteristics of SBA-15 silica were investigated with TG-DSC, XRD, SEM, TEM and N2 adsorption-desorption under changing aging conditions. SBA-15 silica having a 2D-hexagonal structure was synthesized and confirmed by SEM and TEM. The structure of mesoporus silica SBA-15 showed a pore having regularly formed hexagonal structure and a passage having a cylindrical shape. This result is in good agreement with the pore forming in XRD and cylindrical shape of the structure in N2 adsorption-desorption isotherm. SBA-15 silica showed a large BET surface area of 603-698 m2/g, a pore volume of 0.673-0.926 cm3/g, a large pore diameter of 5.62-7.42 nm, and a thick pore wall of 3.31-4.37 nm. This result shows that as the aging temperature increases, the BET surface area, pore volume, and pore diameter increase but the pore wall thickness decreases. The BET surface areas in SM-2 and SM-3 are as large as 698 m2/g. However, SM-2 has a large surface area and forms a thick pore wall, when the aging temperature is 100˚C and is synthesized into stable mesoporous SBA-15 silica.
