논문 상세보기
pp.123-127

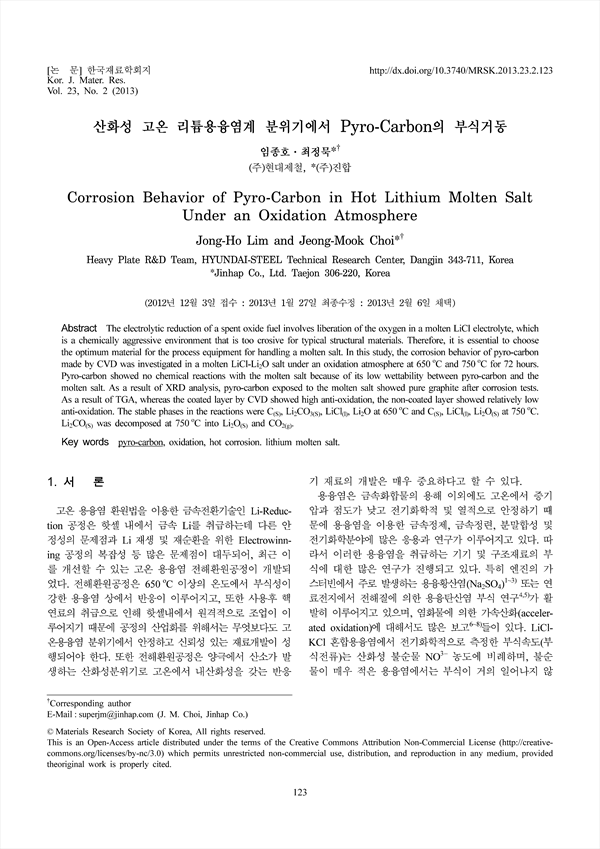

The electrolytic reduction of a spent oxide fuel involves liberation of the oxygen in a molten LiCl electrolyte, which is a chemically aggressive environment that is too crosive for typical structural materials. Therefore, it is essential to choose the optimum material for the process equipment for handling a molten salt. In this study, the corrosion behavior of pyro-carbon made by CVD was investigated in a molten LiCl-Li2O salt under an oxidation atmosphere at 650˚C and 750˚C for 72 hours. Pyro-carbon showed no chemical reactions with the molten salt because of its low wettability between pyro-carbon and the molten salt. As a result of XRD analysis, pyro-carbon exposed to the molten salt showed pure graphite after corrosion tests. As a result of TGA, whereas the coated layer by CVD showed high anti-oxidation, the non-coated layer showed relatively low anti-oxidation. The stable phases in the reactions were C(S), Li2CO3(S), LiCl(l), Li2O at 650˚C and C(S), LiCl(l), Li2O(S) at 750˚C. Li2CO(S) was decomposed at 750˚C into Li2O(S) and CO2(g).
