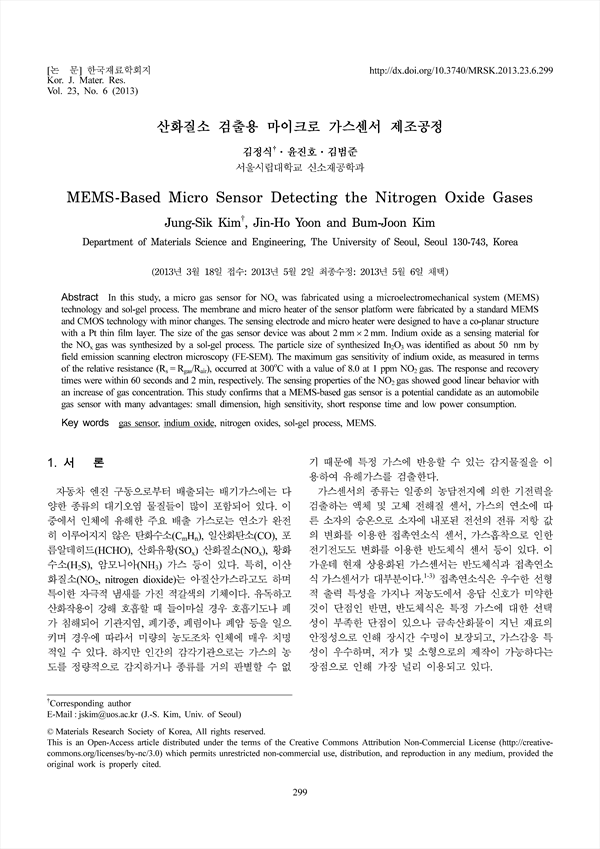

산화질소 검출용 마이크로 가스센서 제조공정 KCI 등재 SCOPUS

MEMS-Based Micro Sensor Detecting the Nitrogen Oxide Gases

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/297451
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
한국재료학회지 (Korean Journal of Materials Research)
한국재료학회 (Materials Research Society Of Korea)
초록

In this study, a micro gas sensor for NOx was fabricated using a microelectromechanical system (MEMS) technology and sol-gel process. The membrane and micro heater of the sensor platform were fabricated by a standard MEMS and CMOS technology with minor changes. The sensing electrode and micro heater were designed to have a co-planar structure with a Pt thin film layer. The size of the gas sensor device was about 2mm×2mm. Indium oxide as a sensing material for the NOx gas was synthesized by a sol-gel process. The particle size of synthesized In2O3 was identified as about 50 nm by field emission scanning electron microscopy (FE-SEM). The maximum gas sensitivity of indium oxide, as measured in terms of the relative resistance (Rs=Rgas/Rair), occurred at 300˚C with a value of 8.0 at 1 ppm NO2 gas. The response and recovery times were within 60 seconds and 2 min, respectively. The sensing properties of the NO2 gas showed good linear behavior with an increase of gas concentration. This study confirms that a MEMS-based gas sensor is a potential candidate as an automobile gas sensor with many advantages: small dimension, high sensitivity, short response time and low power consumption.

저자
  • 김정식(서울시립대학교 신소재공학과) | Kim, Jung-Sik
  • 윤진호( 서울시립대학교 신소재공학과) | 윤진호
  • 김범준( 서울시립대학교 신소재공학과) | 김범준
