논문 상세보기

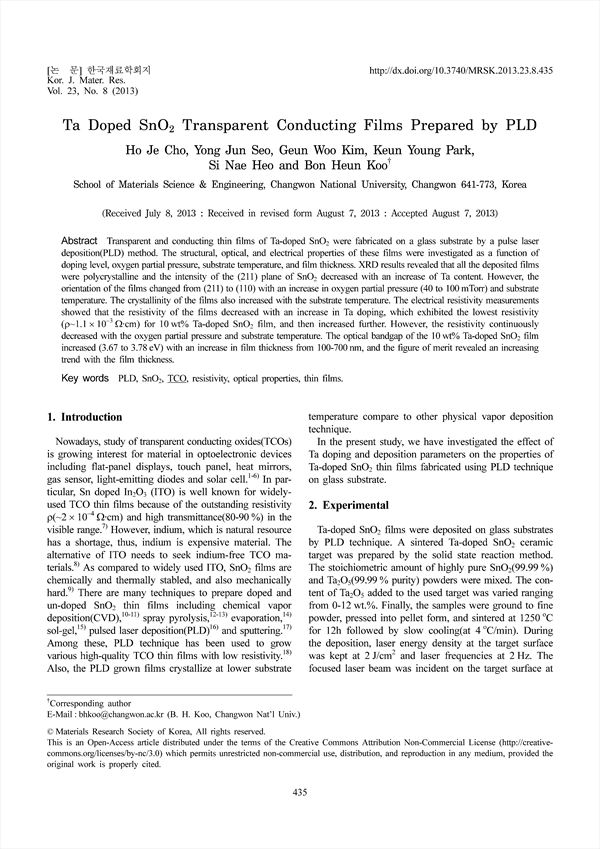

Ta Doped SnO2 Transparent Conducting Films Prepared by PLD KCI 등재 SCOPUS
- 언어ENG
- URLhttps://db.koreascholar.com/Article/Detail/297471
pp.435-440
Transparent and conducting thin films of Ta-doped SnO2 were fabricated on a glass substrate by a pulse laserdeposition(PLD) method. The structural, optical, and electrical properties of these films were investigated as a function ofdoping level, oxygen partial pressure, substrate temperature, and film thickness. XRD results revealed that all the deposited filmswere polycrystalline and the intensity of the (211) plane of SnO2 decreased with an increase of Ta content. However, theorientation of the films changed from (211) to (110) with an increase in oxygen partial pressure (40 to 100mTorr) and substratetemperature. The crystallinity of the films also increased with the substrate temperature. The electrical resistivity measurementsshowed that the resistivity of the films decreased with an increase in Ta doping, which exhibited the lowest resistivity(ρ~1.1×10−3Ω·cm) for 10wt% Ta-doped SnO2 film, and then increased further. However, the resistivity continuouslydecreased with the oxygen partial pressure and substrate temperature. The optical bandgap of the 10wt% Ta-doped SnO2 filmincreased (3.67 to 3.78eV) with an increase in film thickness from 100-700nm, and the figure of merit revealed an increasingtrend with the film thickness.
