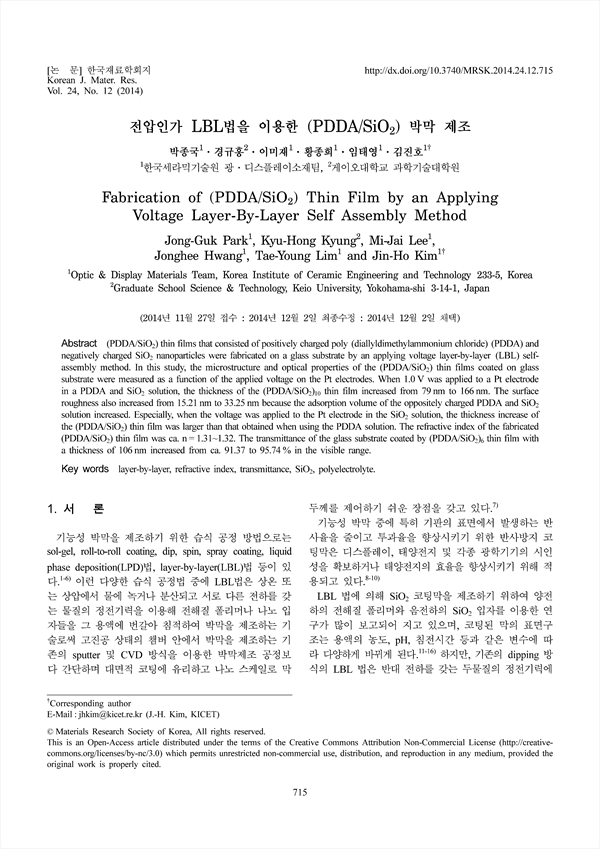

전압인가 LBL법을 이용한 (PDDA/SiO2) 박막 제조 KCI 등재 SCOPUS

Fabrication of (PDDA/SiO2) Thin Film by an Applying Voltage Layer-By-Layer Self Assembly Method

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/297631
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
한국재료학회지 (Korean Journal of Materials Research)
한국재료학회 (Materials Research Society Of Korea)
초록

(PDDA/SiO2) thin films that consisted of positively charged poly (diallyldimethylammonium chloride) (PDDA) and negatively charged SiO2 nanoparticles were fabricated on a glass substrate by an applying voltage layer-by-layer (LBL) self-assembly method. In this study, the microstructure and optical properties of the (PDDA/SiO2) thin films coated on glass substrate were measured as a function of the applied voltage on the Pt electrodes. When 1.0 V was applied to a Pt electrode in a PDDA and SiO2 solution, the thickness of the (PDDA/SiO2)10 thin film increased from 79 nm to 166 nm. The surface roughness also increased from 15.21 nm to 33.25 nm because the adsorption volume of the oppositely charged PDDA and SiO2 solution increased. Especially, when the voltage was applied to the Pt electrode in the SiO2 solution, the thickness increase of the (PDDA/SiO2) thin film was larger than that obtained when using the PDDA solution. The refractive index of the fabricated (PDDA/SiO2) thin film was ca. n = 1.31~1.32. The transmittance of the glass substrate coated by (PDDA/SiO2)6 thin film with a thickness of 106 nm increased from ca. 91.37 to 95.74% in the visible range.

저자
  • 박종국(한국세라믹기술원 광·디스플레이소재팀) | Park, Jong-Guk
  • 경규홍( 게이오대학교 과학기술대학원) | 경규홍
  • 이미재( 한국세라믹기술원 광·디스플레이소재팀) | 이미재
  • 황종희( 한국세라믹기술원 광·디스플레이소재팀) | 황종희
  • 임태영( 한국세라믹기술원 광·디스플레이소재팀) | 임태영
  • 김진호( 한국세라믹기술원 광·디스플레이소재팀) | 김진호
