광탄성 플라스틱 PMMA와 PSM-1의 기계적 물성과 응력프린지 상수 측정 시험 KCI 등재

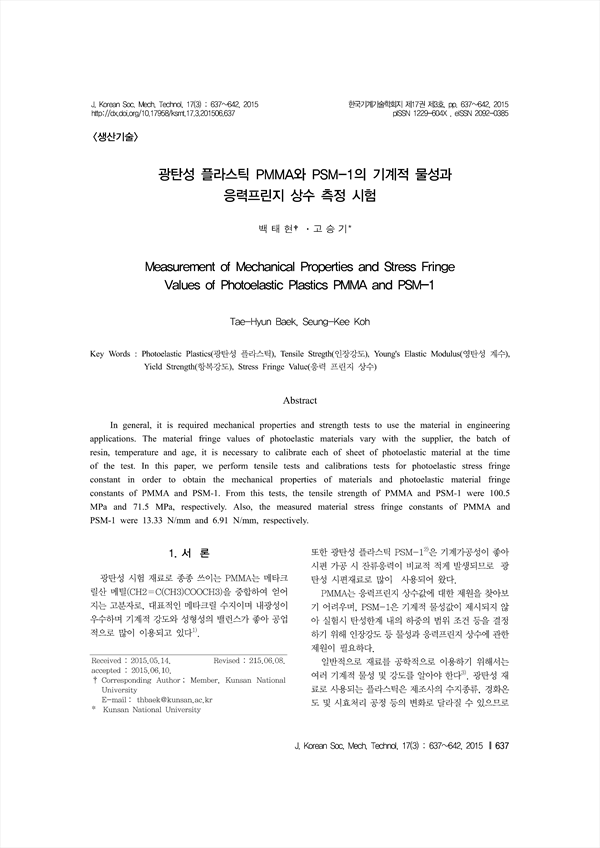

Measurement of Mechanical Properties and Stress Fringe Values of Photoelastic Plastics PMMA and PSM-1

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/303035
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
한국기계기술학회지 (Journal of the Korean Society of Mechanical Technology)
한국기계기술학회 (Korean Society of Mechanical Technology)
초록

In general, it is required mechanical properties and strength tests to use the material in engineering applications. The material fringe values of photoelastic materials vary with the supplier, the batch of resin, temperature and age, it is necessary to calibrate each of sheet of photoelastic material at the time of the test. In this paper, we perform tensile tests and calibrations tests for photoelastic stress fringe constant in order to obtain the mechanical properties of materials and photoelastic material fringe constants of PMMA and PSM-1. From this tests, the tensile strength of PMMA and PSM-1 were 100.5 MPa and 71.5 MPa, respectively. Also, the measured material stress fringe constants of PMMA and PSM-1 were 13.33 N/mm and 6.91 N/mm, respectively.

저자
  • 백태현(Member, Kunsan National University) | Tae-Hyun Baek Corresponding Author
  • 고승기(Kunsan National University) | Seung-Kee Koh
