pp.49-58

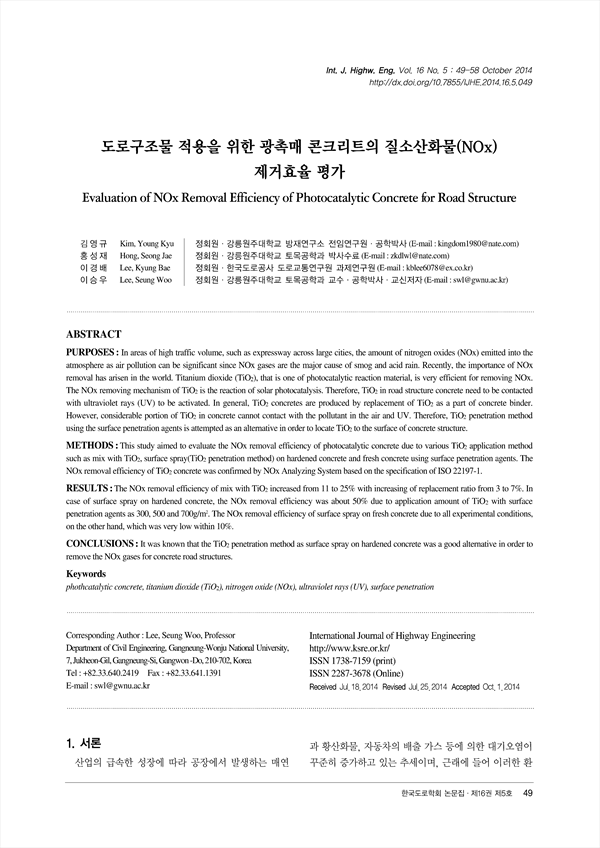

PURPOSES: In areas of high traffic volume, such as expressway across large cities, the amount of nitrogen oxides (NOx) emitted into the atmosphere as air pollution can be significant since NOx gases are the major cause of smog and acid rain. Recently, the importance of NOx removal has arisen in the world. Titanium dioxide (TiO2), that is one of photocatalytic reaction material, is very efficient for removing NOx. The NOx removing mechanism of TiO2 is the reaction of solar photocatalysis. Therefore, TiO2 in road structure concrete need to be contacted with ultraviolet rays (UV) to be activated. In general, TiO2 concretes are produced by replacement of TiO2 as a part of concrete binder. However, considerable portion of TiO2 in concrete cannot contact with the pollutant in the air and UV. Therefore, TiO2 penetration method using the surface penetration agents is attempted as an alternative in order to locate TiO2 to the surface of concrete structure. METHODS: This study aimed to evaluate the NOx removal efficiency of photocatalytic concrete due to various TiO2 application method such as mix with TiO2, surface spray(TiO2 penetration method) on hardened concrete and fresh concrete using surface penetration agents. The NOx removal efficiency of TiO2 concrete was confirmed by NOx Analyzing System based on the specification of ISO 22197-1. RESULTS: The NOx removal efficiency of mix with TiO2 increased from 11 to 25% with increasing of replacement ratio from 3 to 7%. In case of surface spray on hardened concrete, the NOx removal efficiency was about 50% due to application amount of TiO2 with surface penetration agents as 300, 500 and 700g/m2. The NOx removal efficiency of surface spray on fresh concrete due to all experimental conditions, on the other hand, which was very low within 10%. CONCLUSIONS: It was known that the TiO2 penetration method as surface spray on hardened concrete was a good alternative in order to remove the NOx gases for concrete road structures.
