pp.318-319

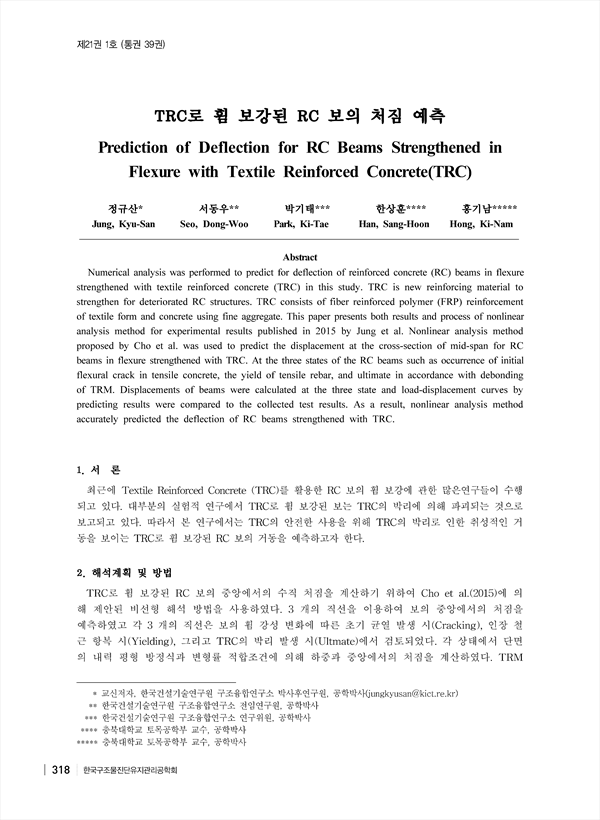

Numerical analysis was performed to predict for deflection of reinforced concrete (RC) beams in flexure strengthened with textile reinforced concrete (TRC) in this study. TRC is new reinforcing material to strengthen for deteriorated RC structures. TRC consists of fiber reinforced polymer (FRP) reinforcement of textile form and concrete using fine aggregate. This paper presents both results and process of nonlinear analysis method for experimental results published in 2015 by Jung et al. Nonlinear analysis method proposed by Cho et al. was used to predict the displacement at the cross-section of mid-span for RC beams in flexure strengthened with TRC. At the three states of the RC beams such as occurrence of initial flexural crack in tensile concrete, the yield of tensile rebar, and ultimate in accordance with debonding of TRM. Displacements of beams were calculated at the three state and load-displacement curves by predicting results were compared to the collected test results. As a result, nonlinear analysis method accurately predicted the deflection of RC beams strengthened with TRC.
