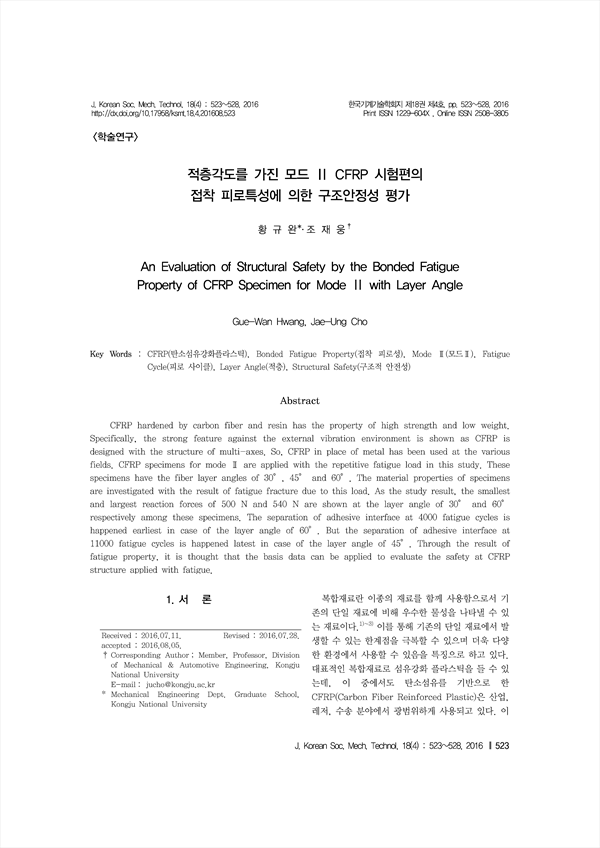

CFRP hardened by carbon fiber and resin has the property of high strength and low weight. Specifically, the strong feature against the external vibration environment is shown as CFRP is designed with the structure of multi-axes. So, CFRP in place of metal has been used at the various fields. CFRP specimens for mode Ⅱ are applied with the repetitive fatigue load in this study. These specimens have the fiber layer angles of 30°, 45° and 60°. The material properties of specimens are investigated with the result of fatigue fracture due to this load. As the study result, the smallest and largest reaction forces of 500 N and 540 N are shown at the layer angle of 30° and 60° respectively among these specimens. The separation of adhesive interface at 4000 fatigue cycles is happened earliest in case of the layer angle of 60°. But the separation of adhesive interface at 11000 fatigue cycles is happened latest in case of the layer angle of 45°. Through the result of fatigue property, it is thought that the basis data can be applied to evaluate the safety at CFRP structure applied with fatigue.

• 황규완(Mechanical Engineering Dept. Graduate School, Kongju National University) | Gue-Wan Hwang
• 조재웅(Professor, Division of Mechanical & Automotive Engineering, Kongju National University) | Jae-Ung Cho Corresponding Author
