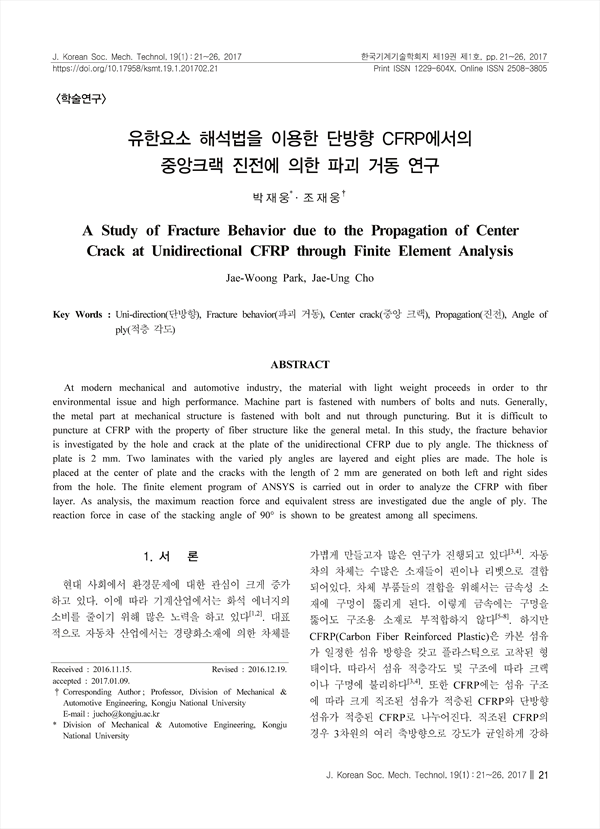

At modern mechanical and automotive industry, the material with light weight proceeds in order to thr environmental issue and high performance. Machine part is fastened with numbers of bolts and nuts. Generally, the metal part at mechanical structure is fastened with bolt and nut through puncturing. But it is difficult to puncture at CFRP with the property of fiber structure like the general metal. In this study, the fracture behavior is investigated by the hole and crack at the plate of the unidirectional CFRP due to ply angle. The thickness of plate is 2 mm. Two laminates with the varied ply angles are layered and eight plies are made. The hole is placed at the center of plate and the cracks with the length of 2 mm are generated on both left and right sides from the hole. The finite element program of ANSYS is carried out in order to analyze the CFRP with fiber layer. As analysis, the maximum reaction force and equivalent stress are investigated due the angle of ply. The reaction force in case of the stacking angle of 90° is shown to be greatest among all specimens.

• 박재웅(Division of Mechanical & Automotive Engineering, Kongju National University) | Jae-Woong Park
• 조재웅(Professor, Division of Mechanical & Automotive Engineering, Kongju National University) | Jae-Ung Cho Corresponding Author
