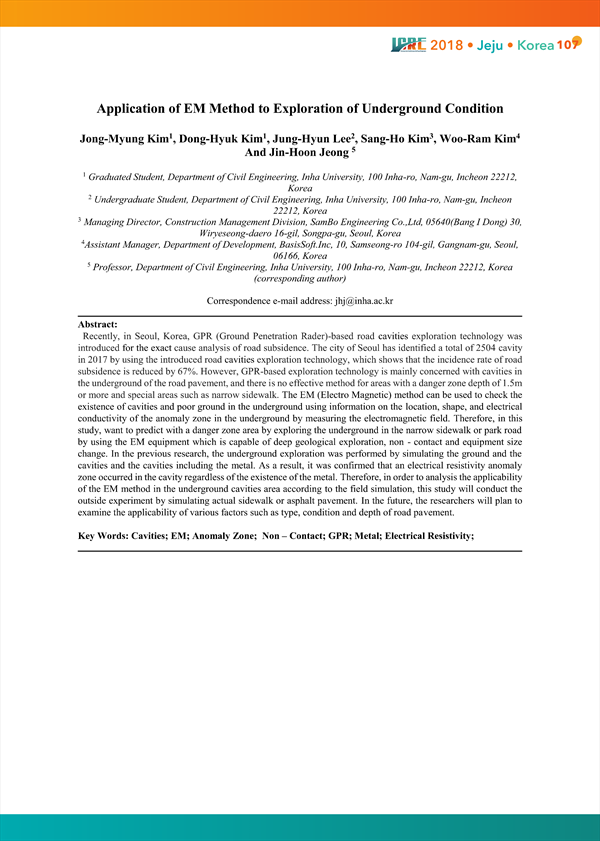

Application of EM Method to Exploration of Underground Condition
- 언어ENG
- URLhttps://db.koreascholar.com/Article/Detail/348273
Recently, in Seoul, Korea, GPR (Ground Penetration Rader)-based road cavities exploration technology was introduced for the exact cause analysis of road subsidence. The city of Seoul has identified a total of 2504 cavity in 2017 by using the introduced road cavities exploration technology, which shows that the incidence rate of road subsidence is reduced by 67%. However, GPR-based exploration technology is mainly concerned with cavities in the underground of the road pavement, and there is no effective method for areas with a danger zone depth of 1.5m or more and special areas such as narrow sidewalk. The EM (Electro Magnetic) method can be used to check the existence of cavities and poor ground in the underground using information on the location, shape, and electrical conductivity of the anomaly zone in the underground by measuring the electromagnetic field. Therefore, in this study, want to predict with a danger zone area by exploring the underground in the narrow sidewalk or park road by using the EM equipment which is capable of deep geological exploration, non - contact and equipment size change. In the previous research, the underground exploration was performed by simulating the ground and the cavities and the cavities including the metal. As a result, it was confirmed that an electrical resistivity anomaly zone occurred in the cavity regardless of the existence of the metal. Therefore, in order to analysis the applicability of the EM method in the underground cavities area according to the field simulation, this study will conduct the outside experiment by simulating actual sidewalk or asphalt pavement. In the future, the researchers will plan to examine the applicability of various factors such as type, condition and depth of road pavement.
