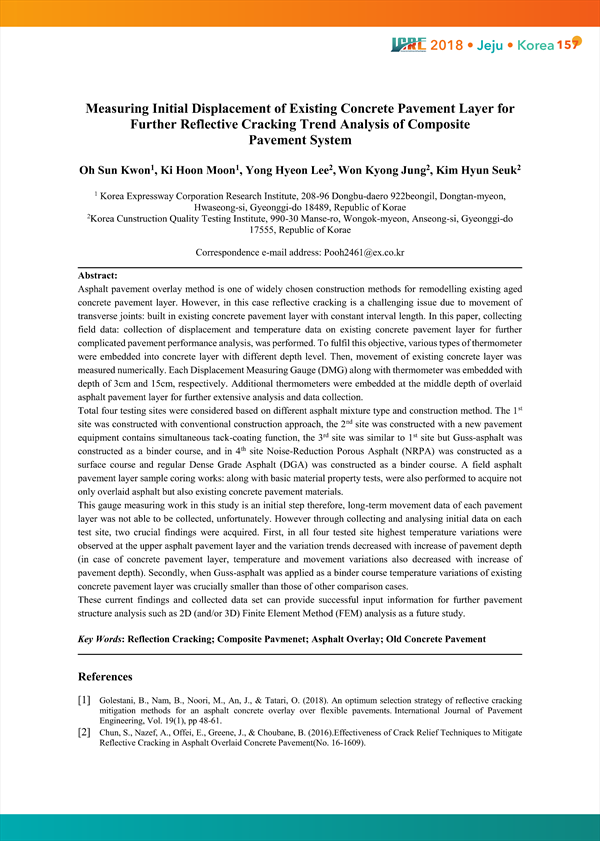

Measuring Initial Displacement of Existing Concrete Pavement Layer for Further Reflective Cracking Trend Analysis of Composite Pavement System
- 언어ENG
- URLhttps://db.koreascholar.com/Article/Detail/348320
Asphalt pavement overlay method is one of widely chosen construction methods for remodelling existing aged concrete pavement layer. However, in this case reflective cracking is a challenging issue due to movement of transverse joints: built in existing concrete pavement layer with constant interval length. In this paper, collecting field data: collection of displacement and temperature data on existing concrete pavement layer for further complicated pavement performance analysis, was performed. To fulfil this objective, various types of thermometer were embedded into concrete layer with different depth level. Then, movement of existing concrete layer was measured numerically. Each Displacement Measuring Gauge (DMG) along with thermometer was embedded with depth of 3cm and 15cm, respectively. Additional thermometers were embedded at the middle depth of overlaid asphalt pavement layer for further extensive analysis and data collection. Total four testing sites were considered based on different asphalt mixture type and construction method. The 1st site was constructed with conventional construction approach, the 2nd site was constructed with a new pavement equipment contains simultaneous tack-coating function, the 3rd site was similar to 1st site but Guss-asphalt was constructed as a binder course, and in 4th site Noise-Reduction Porous Asphalt (NRPA) was constructed as a surface course and regular Dense Grade Asphalt (DGA) was constructed as a binder course. A field asphalt pavement layer sample coring works: along with basic material property tests, were also performed to acquire not only overlaid asphalt but also existing concrete pavement materials. This gauge measuring work in this study is an initial step therefore, long-term movement data of each pavement layer was not able to be collected, unfortunately. However through collecting and analysing initial data on each test site, two crucial findings were acquired. First, in all four tested site highest temperature variations were observed at the upper asphalt pavement layer and the variation trends decreased with increase of pavement depth (in case of concrete pavement layer, temperature and movement variations also decreased with increase of pavement depth). Secondly, when Guss-asphalt was applied as a binder course temperature variations of existing concrete pavement layer was crucially smaller than those of other comparison cases. These current findings and collected data set can provide successful input information for further pavement structure analysis such as 2D (and/or 3D) Finite Element Method (FEM) analysis as a future study.
