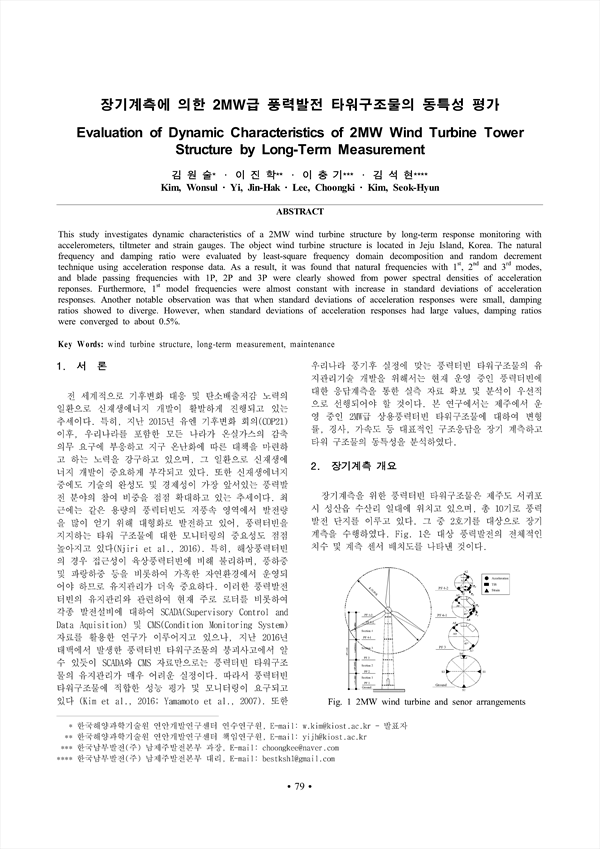

This study investigates dynamic characteristics of a 2MW wind turbine structure by long-term response monitoring with accelerometers, tiltmeter and strain gauges. The object wind turbine structure is located in Jeju Island, Korea. The natural frequency and damping ratio were evaluated by least-square frequency domain decomposition and random decrement technique using acceleration response data. As a result, it was found that natural frequencies with 1st, 2nd and 3rd modes, and blade passing frequencies with 1P, 2P and 3P were clearly showed from power spectral densities of acceleration reponses. Furthermore, 1st model frequencies were almost constant with increase in standard deviations of acceleration responses. Another notable observation was that when standard deviations of acceleration responses were small, damping ratios showed to diverge. However, when standard deviations of acceleration responses had large values, damping ratios were converged to about 0.5%.
1. 서 론
2. 장기계측 개요
3. 실측결과 및 고찰
References
